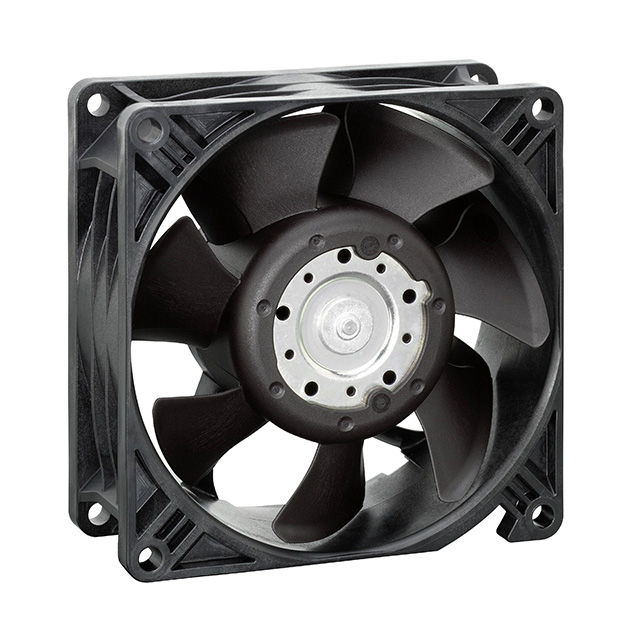

3258J/2HHPU

Active

ebm-papst Inc.

FAN AXIAL 92X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 92X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Features	RPM	Width [y]	Voltage - Rated [custom]	Noise	Approval Agency	Termination	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Weight	Weight	Material - Blade	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Air Flow	Air Flow	Lifetime @ Temp.	Ingress Protection	Air Flow
ebm-papst Inc. 3258J/2HHP	24 W	Speed Sensor (Tach)	6650 RPM	38 mm	48 VDC	59 dB(A)	CSA UL VDE	3 Wire Leads	36 VDC	56 VDC	Ball	239.95 g	0.529 lb	Nylon Polyamide (PA)	Tubeaxial	-20 °C	70 °C	-20 C	70 °C
ebm-papst Inc. 3258J/2H3P	33.6 W	PWM Control Speed Sensor (Tach)	7450 RPM	38 mm	48 VDC	64 dB(A)	CSA UL VDE	4 Wire Leads	36 VDC	56 VDC	Ball	239.95 g	0.529 lb	Nylon Polyamide (PA)	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	0.7 A	4.42 m³/min	158 CFM	85000 Hrs
ebm-papst Inc. 3258J/2HHPU	24 W	Speed Sensor (Tach)	6650 RPM	38 mm	48 VDC	59 dB(A)	UL	3 Wire Leads	36 VDC	56 VDC	Ball	239.95 g	0.529 lb	Nylon Polyamide (PA)	Tubeaxial	-20 °C	70 °C	-20 C	70 °C					IP68 - Dust Tight Waterproof
ebm-papst Inc. 3258J/2H3PU	33.6 W	PWM Control Speed Sensor (Tach)	7450 RPM	38 mm	48 VDC	64 dB(A)	UL	4 Wire Leads	36 VDC	56 VDC	Ball	239.95 g	0.529 lb	Nylon Polyamide (PA)	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	0.7 A	4.42 m³/min		85000 Hrs	IP68 - Dust Tight Waterproof	158 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.81

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 138.0 CFM (3.86m³/min) 3 Wire Leads
