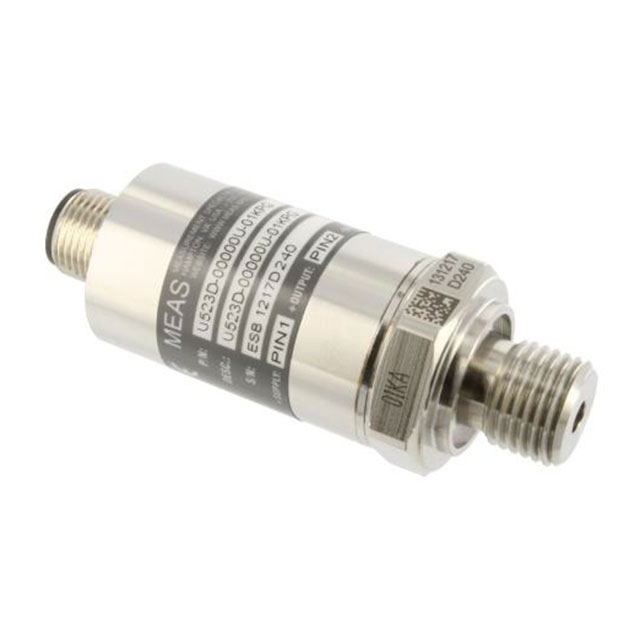

U5354-000005-015PG

Unknown

TE Connectivity Measurement Specialties

SENSOR

Search across all available documentation for this part.

Unknown

TE Connectivity Measurement Specialties

SENSOR

Technical Specifications

Parameters and characteristics for this part

Part	Operating Pressure	Operating Pressure	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size	Port Size	Port Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Output [Max]	Output [Min]	Output Type	Package / Case	Accuracy	Maximum Pressure	Maximum Pressure	Pressure Type	Operating Pressure [custom]	Operating Pressure [custom]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]
TE Connectivity Measurement Specialties U5354-000002-014BA	203.05 PSI	1400 kPa	Industrial Automation	4200 kPa	609.16 PSI	BSPP Male	6.35 mm	Threaded	Temperature Compensated	125 °C	-40 °C	30 VDC	9 V	Connector	20 mA	4 mA	Analog Current	Cylinder	0.1 %
TE Connectivity Measurement Specialties U5354-000002-001BG	14.5 PSI	100 kPa	Industrial Automation			BSPP Male	6.35 mm	Threaded	Temperature Compensated	125 °C	-40 °C	30 VDC	9 V	Connector	20 mA	4 mA	Analog Current	Cylinder	0.1 %	43.51 PSI	300 kPa	Vented Gauge
TE Connectivity Measurement Specialties U5354-000005-015PG			Industrial Automation		15 PSI			Threaded	Temperature Compensated	125 °C	-40 °C	30 VDC	9 V	Connector	20 mA	4 mA	Analog Current	Cylinder	0.1 %		103.42 kPa	Vented Gauge	15 PSI	103.42 kPa	NPT	0.25 "	6.35 mm	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR

Technical documentation and resources

No documents available
