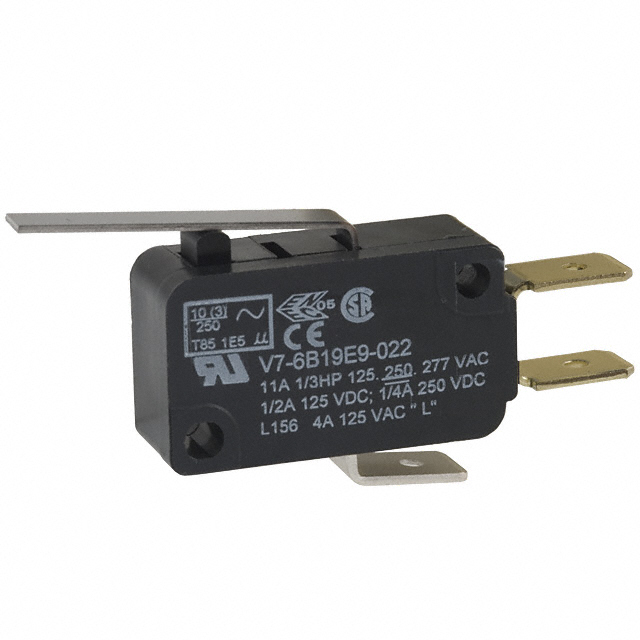

V7-6B19E9-022
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 11A 125V
Deep-Dive with AI
Search across all available documentation for this part.
V7-6B19E9-022
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 11A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7-6B19E9-022 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 11 A, 500 mA |
| Differential Travel | 0.03 in |
| Differential Travel | 0.76 mm |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 215 gf |
| Operating Position | 0.6 in |
| Operating Position | 15.2 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.35 mm |
| Overtravel | 0.053 in |
| Pretravel | 0.128 in |
| Pretravel | 3.25 mm |
| Release Force | 38 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.00 | |
| 10 | $ 2.48 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.18 | |||
| 100 | $ 2.06 | |||
| 250 | $ 2.05 | |||
Description
General part information
V7-6B1 Series
Switch SPDT Chassis Mount
