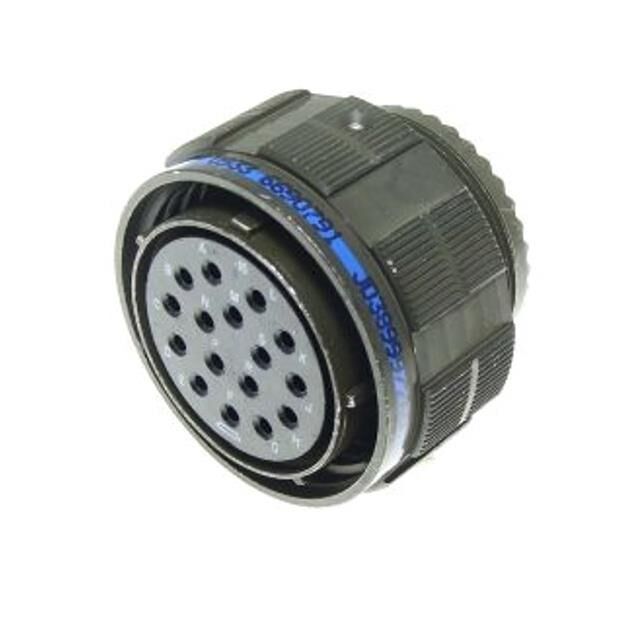

D38999/20FE2SBL

Active

Corsair

D38999 SER III RECEPTACLE

Search across all available documentation for this part.

Active

Corsair

D38999 SER III RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Shielding	Mounting Feature	Termination	Shell Finish	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Contact Material	Primary Material	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, MIL	Color	Shell Material	Insert Material	Current Rating (Amps)	Orientation	Shell Size - Insert	Note	Type	Contact Type	Housing Color
Corsair D38999/20FE99SB	Aviation Marine Military	Shielded	Flange	Crimp	Nickel	Receptacle Female Sockets	99	17	Gold	Copper Alloy	Metal	IP67 - Dust Tight Waterproof	1.27 µm	50 µin	23	-65 ░C	200 °C	E	Silver	Aluminum	Thermoplastic	7.5 A 13 A	B
Corsair D38999/20FE8PB	Aviation Marine Military	Shielded	Flange	Crimp	Nickel	Male Pins Receptacle			Gold	Copper Alloy	Metal	IP67 - Dust Tight Waterproof	1.27 µm	50 µin	8	-65 ░C	200 °C	E	Silver	Aluminum	Thermoplastic	13 A	B	17-8
Corsair D38999/20FE2SBL			Flange		Electroless Nickel	Receptacle Housing					Metal							E		Aluminum			B		Contacts Not Included	For Female Sockets	Crimp	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Circular Connector Receptacle Housing Panel Mount
