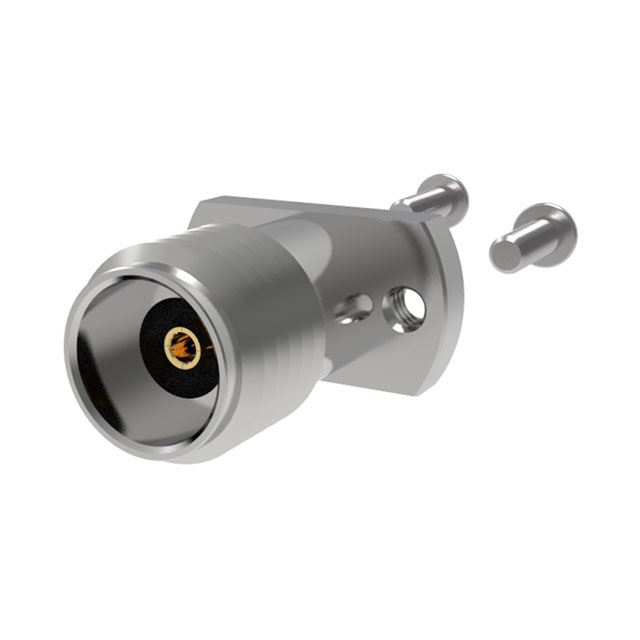

TMB-V9F2-3L1

Active

CarlisleIT

2.92(F)2-H,VL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

2.92(F)2-H,VL,FIELDREP

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-V9F2-3L1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.38 dB
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Screw
Voltage Rating	500 V

Part	Body Material	Insertion Loss	Number of Ports	Connector Style	Contact Termination	Center Contact Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Impedance	Features	Mounting Type	Housing Color	Mating Cycles	Connector Type	Frequency - Max [Max]	Shield Termination	Mounting Feature
CarlisleIT TMB-V9F2-3L1	Stainless Steel	0.38 dB	1	2.92 mm	Compression	Beryllium Copper	500 V	85 °C	-55 °C	Gold	50 Ohms	Field Replaceable For Hermetically Sealed Pin	Surface Mount	Silver	500	Female Socket Jack	40 GHz	Screw	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
