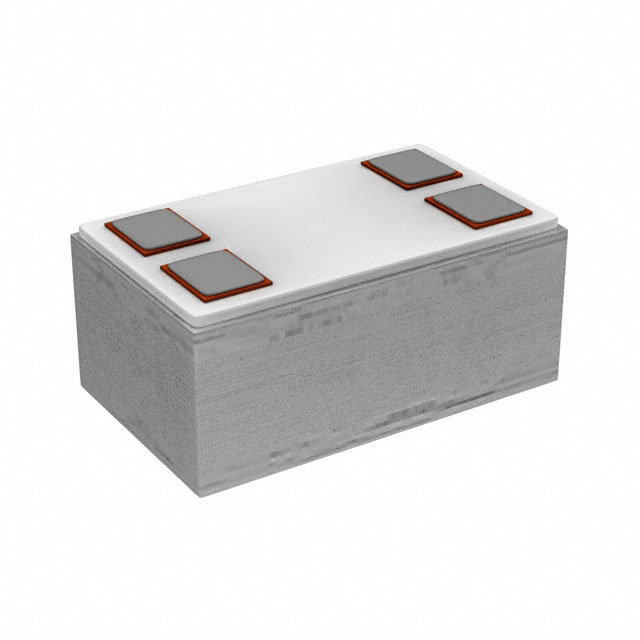

SMS7621-092

Obsolete

Skyworks Solutions Inc.

RF DIODE SCHOTTKY 75MW 0201

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

RF DIODE SCHOTTKY 75MW 0201

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Voltage - Peak Reverse (Max) [Max]	Diode Type	Power Dissipation (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Capacitance @ Vr, F	Resistance @ If, F	Supplier Device Package
Skyworks Solutions Inc. SMS7621-006LF	50 mA	2 V	Schottky - 1 Pair Series Connection	75 mw	SC-59 SOT-23-3 TO-236-3	-65 °C	150 °C	SOT-23-3
Skyworks Solutions Inc. SMS7621-517	50 mA	2 V	Schottky - 2 Independent	75 mw	4-SMD No Lead	-65 °C	150 °C
Skyworks Solutions Inc. SMS7621-005LF	50 mA	2 V	Schottky - 1 Pair Series Connection	75 mw	SC-59 SOT-23-3 TO-236-3	-65 °C	150 °C	SOT-23-3
Skyworks Solutions Inc. SMS7621-096	50 mA	2 V	Schottky - Single	75 mw	0201			0201	0603 Metric	0.18 pF	12 Ohm	0603 Metric
Skyworks Solutions Inc. SMS7621-081LF	50 mA	2 V	Schottky - 2 Pair Series	75 mw	6-TSSOP SC-88 SOT-363	-65 °C	150 °C	SC-88
Skyworks Solutions Inc. SMS7621-001LF	50 mA	2 V	Schottky - Single	75 mw	SC-59 SOT-23-3 TO-236-3	-65 °C	150 °C	SOT-23-3
Skyworks Solutions Inc. SMS7621-092	50 mA		Schottky - Anti-Parallel	75 mw	0201	-65 °C	150 °C	0201	0603 Metric	0.3 pF		0603 Metric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Diode Schottky - Anti-Parallel 50 mA 75 mW 0201 (0603 Metric)
