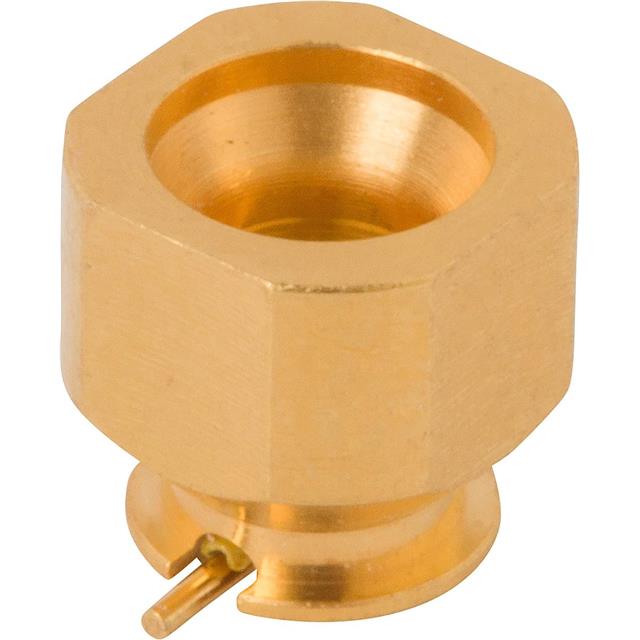

3287-6101
ActiveAmphenol SV Microwave
CONN SMPM PLUG STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
3287-6101
ActiveAmphenol SV Microwave
CONN SMPM PLUG STR 50 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3287-6101 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyamide-Imide (PAI) |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Frequency - Max [Max] | 20 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 43.15 | |
| 10 | $ 33.38 | |||
| 25 | $ 30.28 | |||
| 50 | $ 28.18 | |||
| Digi-Reel® | 1 | $ 43.15 | ||
| 10 | $ 33.38 | |||
| 25 | $ 30.28 | |||
| 50 | $ 28.18 | |||
| Tape & Reel (TR) | 100 | $ 26.29 | ||
| 200 | $ 24.57 | |||
| 300 | $ 23.65 | |||
Description
General part information
3287-61 Series
SMPM Connector Plug, Male Pin 50 Ohms Surface Mount Solder
