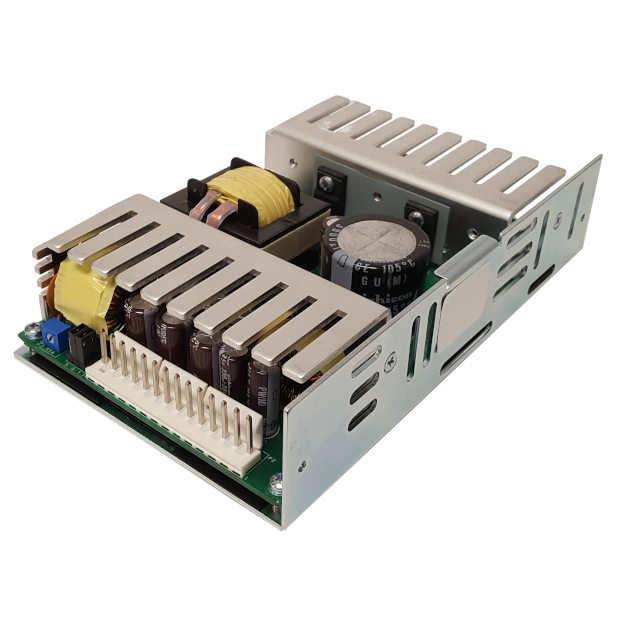

1010520CH

Active

Integrated Power Designs

REL-150-1006 CH

Search across all available documentation for this part.

Active

Integrated Power Designs

REL-150-1006 CH

Technical Specifications

Parameters and characteristics for this part

Specification	1010520CH

Applications	Industrial, Laboratory, Medical, ITE (Commercial)
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	6.3 A
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	150 W
Size / Dimension [x]	6.25 "
Size / Dimension [x]	156.8 mm
Size / Dimension [y]	3.96 in
Size / Dimension [y]	100.5 mm
Size / Dimension [z]	37.6 mm
Size / Dimension [z]	1.48 "
Standard Number	60601-1, 62368-1
Type	Chassis
Voltage - Output 1	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Type	Approval Agency	Voltage - Output 1	Number of Outputs	Current - Output 1	Standard Number	Power (Watts)
Integrated Power Designs 1010520CH	70 °C	0 °C	Adjustable Output Remote Sense Universal Input	Chassis Mount	3.96 in	6.25 "	37.6 mm	156.8 mm	1.48 "	100.5 mm	Industrial ITE (Commercial) Laboratory Medical	Chassis	CE cURus TUV UKCA	24 V	1	6.3 A	60601-1 62368-1	150 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Chassis AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
