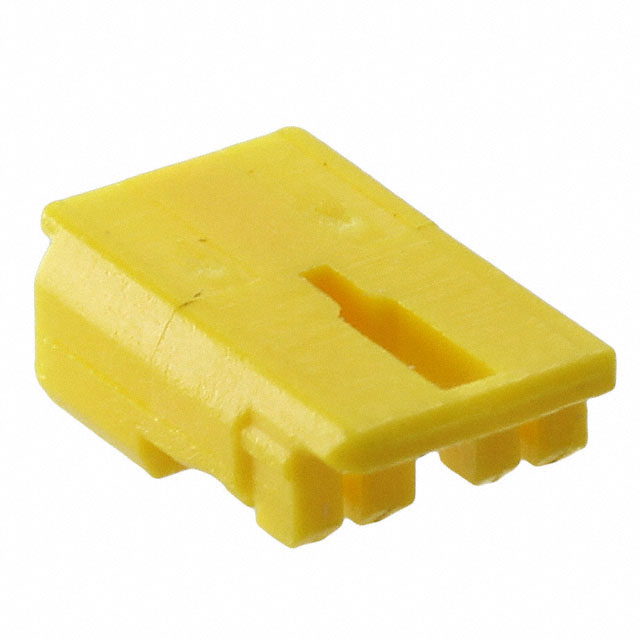

DF61-2S-2.2C(12)

Active

Hirose Electric USA, Inc.

HEADERS & WIRE HOUSINGS 2P CRIMP SCKT 2.2MM PITCH LP YELLOW

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

HEADERS & WIRE HOUSINGS 2P CRIMP SCKT 2.2MM PITCH LP YELLOW

Technical Specifications

Parameters and characteristics for this part

Specification	DF61-2S-2.2C(12)

Color	Yellow
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Swing Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm

Part	Number of Rows	Contact Shape	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shrouding	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights	Connector Type	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Insulation Material	Features	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions	Mounting Type	Fastening Type	Color	Contact Termination	Note	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]
Hirose Electric USA, Inc. DF61-2P-2.2V(71)
Hirose Electric USA, Inc. DF61-2P-2.2V(73)
Hirose Electric USA, Inc. DF61-2P-2.2V(21)	1	Rectangular	Tin	105 ░C	-55 °C	Solder	Shrouded - 3 Wall	Brass	1 µm	39.4 µin	2.38 mm	Header	UL94 V-0	Red	2.18 mm	0.086 in	Liquid Crystal Polymer (LCP)	Solder Retention	All	Board to Cable/Wire	0.087 in	2.2 mm	Male Blade	2	Surface Mount	Swing Lock
Hirose Electric USA, Inc. DF61-2S-2.2C(13)	1			105 ░C	-55 °C							Socket					Polybutylene Terephthalate (PBT)						Female Socket	2	Free Hanging (In-Line)	Swing Lock	Beige	Crimp	Contacts Not Included	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF61-2628SCF																												Crimp				39.4 Áin	1 Ám	Tin	Socket
Hirose Electric USA, Inc. DF61-2630SCF(41)																												Crimp				39.4 Áin	1 Ám	Tin	Socket	26 AWG	30 AWG
Hirose Electric USA, Inc. DF61-2S-2.2C(12)	1			105 ░C	-55 °C							Socket					Polybutylene Terephthalate (PBT)						Female Socket	2	Free Hanging (In-Line)	Swing Lock	Yellow	Crimp	Contacts Not Included	0.087 in	2.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Socket Yellow 0.087" (2.20mm)
