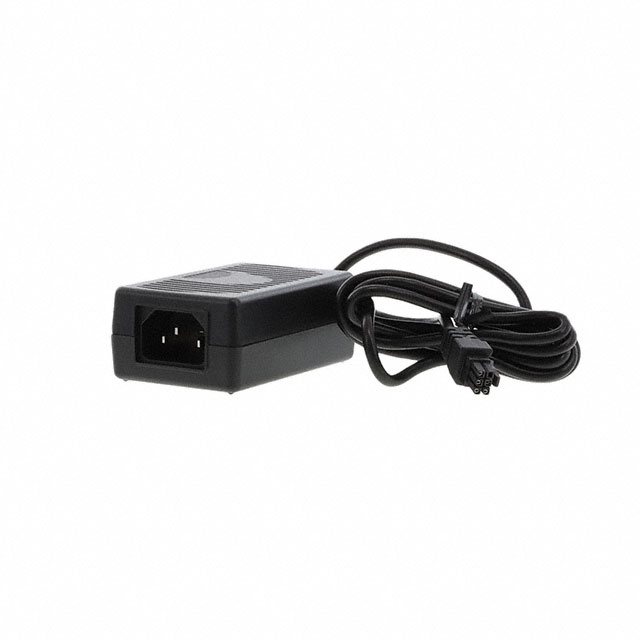

TR9CE2000MLXG-N(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 24W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 24W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE2000MLXG-N(R6B)

Applications	ITE (Commercial)
Approval Agency	UKRSepro, VCCI, PSE, CB, CE, EAC, cULus, SIQ, CCC, S-Mark, LPS, RCM
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	2 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Rectangular, 6 Position
Power (Watts)	24 W
Region Utilized	International
Size / Dimension [x]	80 mm
Size / Dimension [x]	3.15 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	1.22 in
Size / Dimension [z]	31 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Input Connector	Power (Watts)	Form	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Standard Number	Approval Agency	No Load Power Consumption [Max]	Polarization	Voltage - Output	Region Utilized	Current - Output (Max) [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Size / Dimension [y]	Size / Dimension [z]
GlobTek, Inc. TR9CE2000LCP-N(R6B)	60.2 in	1.53 m	90 VAC	264 VAC	ITE (Commercial)	IEC 320-C14	24 W	Desktop (Class I)	3.17 in	80.6 mm	1.22 in	31 mm	1.97 "	50 mm	Level VI	40 °C	0 °C	Cord	60950-1	CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UKRSepro VCCI	75 mW	Positive Center	12 V	International	2 A	Barrel Plug	2.5 mm 5.5 mm	11 mm
GlobTek, Inc. TR9CE2000MLXG-N(R6B)	72 in	1.83 m	90 VAC	264 VAC	ITE (Commercial)	IEC 320-C14	24 W	Desktop (Class I)	3.15 in	80 mm	1.22 in		1.97 "		CoC Tier 2 Level VI	40 °C	0 °C	Cord	60950-1	CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UKRSepro VCCI	75 mW		12 V	International	2 A	Rectangular 6 Position			50 mm	31 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 24 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
