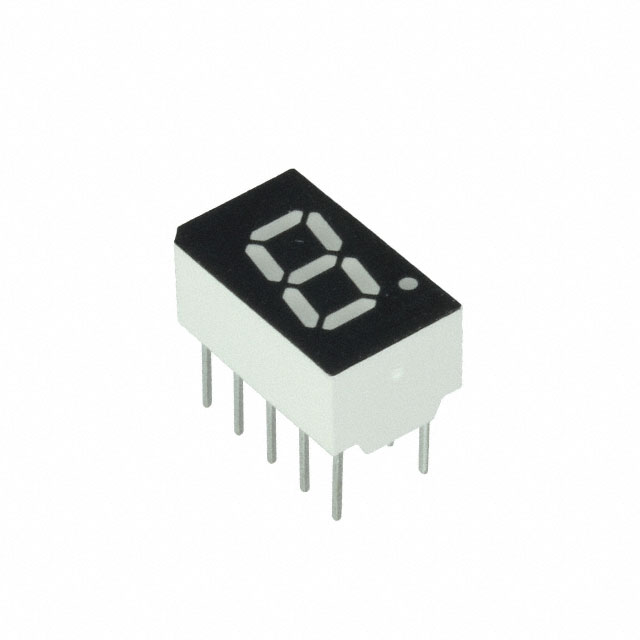

INND-TS30YGAB

Active

Inolux

DISP 7SEG 0.3" SGL YLW-GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

INND-TS30YGAB

Active

Inolux

DISP 7SEG 0.3" SGL YLW-GRN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	INND-TS30YGAB

Color	Yellow-Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	12 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Power Dissipation (Max) [Max]	70 mW
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.7 mm
Size / Dimension [y]	7.62 mm
Size / Dimension [y]	0.3 "
Size / Dimension [z]	0.24 "
Size / Dimension [z]	6.1 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	572 nm

INND-TS30 Series

Part	Display Type	Common Pin	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Peak	Color	Current - Test	Package / Case	Package / Case	Package / Case
Inolux INND-TS30YGAG	7-Segment	Common Anode	0.24 "	6.1 mm	7.62 mm	0.3 "	0.5 in	12.7 mm	1	0.3 in	7.62 mm	70 mW	2 V	12 mcd	572 nm	Yellow-Green	20 mA	10-DIP	0.2 in	0.2 in
Inolux INND-TS30YCG	7-Segment	Common Cathode	0.24 "	6.1 mm	7.62 mm	0.3 "	0.5 in	12.7 mm	1	0.3 in	7.62 mm	70 mW	2 V	30 mcd	592 nm	Yellow	20 mA	10-DIP	0.2 in	0.2 in
Inolux INND-TS30BCG	7-Segment	Common Cathode	0.24 "	6.1 mm	7.62 mm	0.3 "	0.5 in	12.7 mm	1	0.3 in	7.62 mm	114 mW	3.2 V	17 mcd	465 nm	Blue	20 mA	10-DIP	0.2 in	0.2 in
Inolux INND-TS30BAG	7-Segment	Common Anode	0.24 "	6.1 mm	7.62 mm	0.3 "	0.5 in	12.7 mm	1	0.3 in	7.62 mm	114 mW	3.2 V	17 mcd	465 nm	Blue	20 mA	10-DIP	0.2 in	0.2 in
Inolux INND-TS30YGAB	7-Segment	Common Anode	0.24 "	6.1 mm	7.62 mm	0.3 "	0.5 in	12.7 mm	1	0.3 in	7.62 mm	70 mW	2 V	12 mcd	572 nm	Yellow-Green	20 mA	10-DIP	0.2 in	0.2 in
Inolux INND-TS30GAB	7-Segment	Common Anode	0.24 "	6.1 mm	7.62 mm	0.3 "	0.5 in	12.7 mm	1	0.3 in	7.62 mm	114 mW	3.2 V	120 mcd	525 nm	Green	20 mA	10-DIP	0.2 in	0.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.22
		10	$ 0.86
		100	$ 0.64
		500	$ 0.55
		1000	$ 0.51
		2000	$ 0.49
		7000	$ 0.45
		14000	$ 0.43

Description

General part information

INND-TS30 Series

Display Modules - LED Character and Numeric Yellow-Green 7-Segment 1 Character Common Anode 2V 20mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.10mm) 10-DIP (0.200", 5.08mm)
