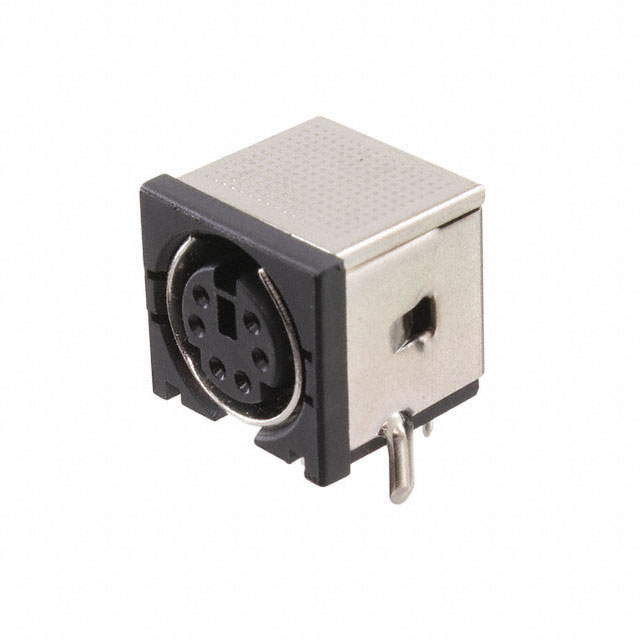

MDJ-006-FS

Active

Adam Tech

CONN JACK FMALE MINI DIN 6P SLDR

Search across all available documentation for this part.

Active

Adam Tech

CONN JACK FMALE MINI DIN 6P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MDJ-006-FS

Applications	Video, Audio
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tin
Shell Material	Copper Alloy
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Orientation	Shell Material	Fastening Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Finish - Mating	Termination	Features	Connector Type	Primary Material	Shielding	Contact Material	Insert Material	Shell Size - Insert	Number of Positions	Applications	Mounting Type	Shell Finish	Material Flammability Rating
Adam Tech MDJ-006-FS	Keyed	Copper Alloy	Push-Pull	12 V 100 VAC	70 °C	-25 °C	Silver	Gold	Solder	Board Guide Board Lock	Female Sockets Jack	Metal	Shielded	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	Mini DIN	6	Audio Video	Through Hole Right Angle	Tin	UL94 V-0
