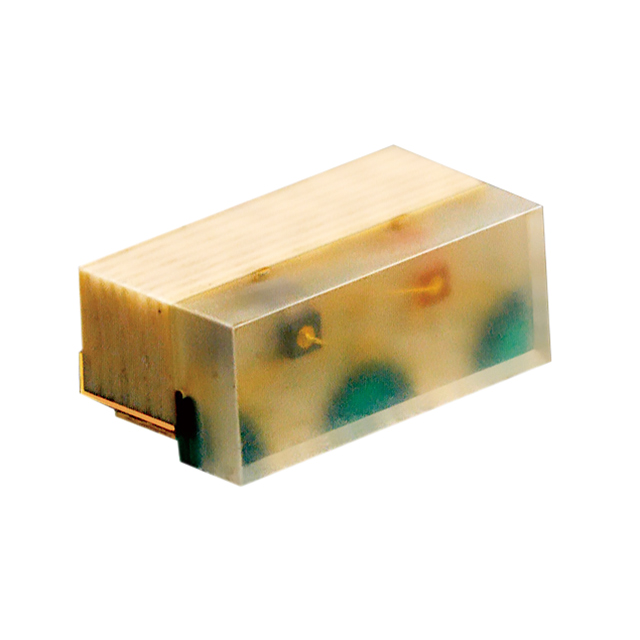

CL-375HR/YG-D
ActiveCitizen Finedevice Co Ltd
LED GREEN/RED SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CL-375HR/YG-D
ActiveCitizen Finedevice Co Ltd
LED GREEN/RED SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-375HR/YG-D |
|---|---|
| Color | Red, Green |
| Configuration | Common Anode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Size [x] | 2.4 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 18 mcd, 23 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 2.4 mm |
| Size / Dimension [y] | 1.35 mm |
| Voltage - Forward (Vf) (Typ) | 1.8 V, 2.2 V |
| Wavelength - Dominant | 660 nm, 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.69 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| Digi-Reel® | 1 | $ 0.69 | ||
| 10 | $ 0.48 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| Tape & Reel (TR) | 3000 | $ 0.27 | ||
| 6000 | $ 0.26 | |||
| 9000 | $ 0.25 | |||
| 15000 | $ 0.24 | |||
| 21000 | $ 0.24 | |||
| 30000 | $ 0.23 | |||
Description
General part information
CL-375 Series
Green, Red 570nm Green, 660nm Red LED Indication - Discrete 2.2V Green, 1.8V Red 3-SMD, No Lead
