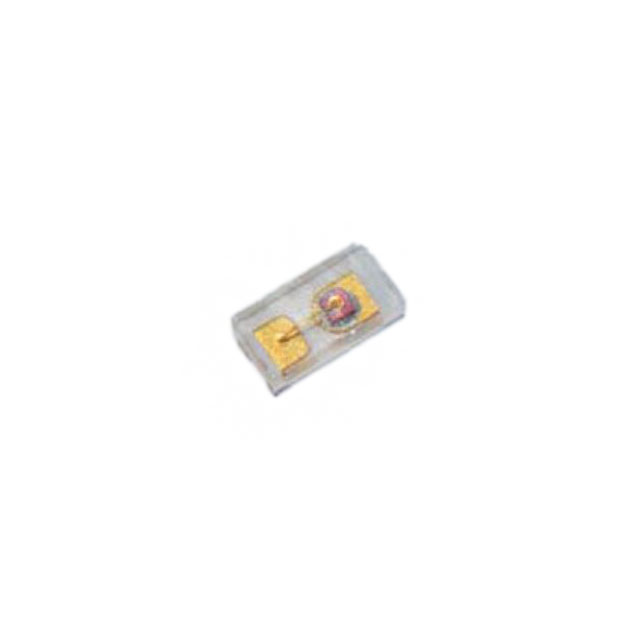

FHD1105P-TR
ActiveStanley Electric Co
LED YLW-GRN CLEAR 1005 SMD
Deep-Dive with AI
Search across all available documentation for this part.
FHD1105P-TR
ActiveStanley Electric Co
LED YLW-GRN CLEAR 1005 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FHD1105P-TR |
|---|---|
| Color | Yellow-Green |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] | 0.25 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1 mm |
| Lens Size [y] | 0.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 9 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 1005 |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 570 nm |
| Wavelength - Peak | 572 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.19 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.19 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.06 | ||
| 30000 | $ 0.06 | |||
| 50000 | $ 0.05 | |||
| 100000 | $ 0.05 | |||
Description
General part information
FHD1105 Series
Yellow-Green 570nm LED Indication - Discrete 1.9V 0402 (1005 Metric)
Documents
Technical documentation and resources
No documents available
