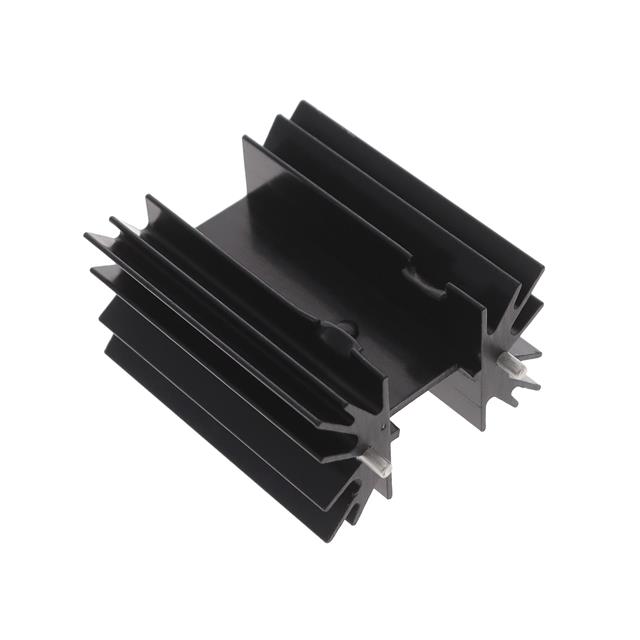

533502B02552G

Active

Boyd Laconia, LLC

BOARD LEVEL HEAT SINK

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

BOARD LEVEL HEAT SINK

Technical Specifications

Parameters and characteristics for this part

Specification	533502B02552G

Attachment Method	Clip, PC Pin
Fin Height [z]	50.8 mm
Fin Height [z]	2 in
Length [x]	1.65 in
Length [x]	41.91 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	6 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	1 °C/W
Thermal Resistance @ Natural	4.5 °C/W
Type	Board Level, Vertical
Width	25.4 mm
Width [x]	1 in

Part	Fin Height [z]	Fin Height [z]	Thermal Resistance @ Natural	Width	Width [x]	Material Finish	Type	Attachment Method	Package Cooled	Shape	Material	Power Dissipation @ Temperature Rise	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]
Boyd Laconia, LLC 533502B02552G	50.8 mm	2 in	4.5 °C/W	25.4 mm	1 in	Black Anodized	Board Level Vertical	Clip PC Pin	TO-220	Rectangular Fins	Aluminum	6 W	1 °C/W	1.65 in	41.91 mm
