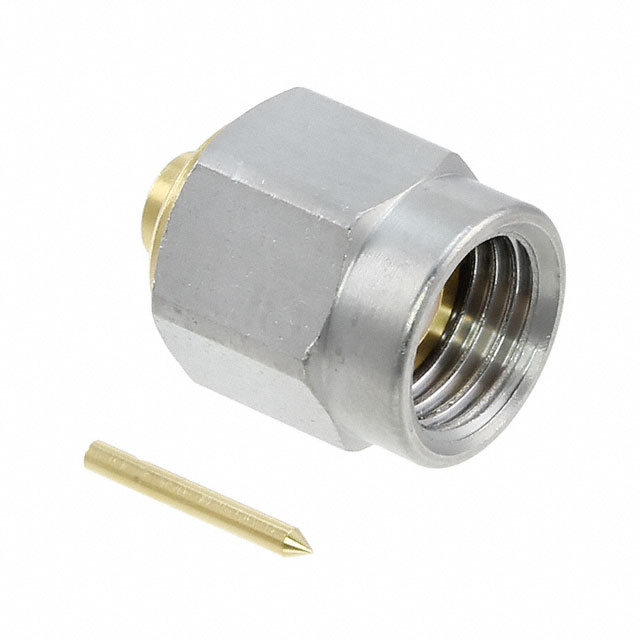

HRM-100-1S1(40)

Active

Hirose Electric USA, Inc.

CONN SMA PLUG STR 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

HRM-100-1S1(40)

Active

Hirose Electric USA, Inc.

CONN SMA PLUG STR 50OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-100-1S1(40)

Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

HRM-100 Series

Part	Contact Termination	Mounting Type	Center Contact Material	Frequency - Max [Max]	Shield Termination	Dielectric Material	Cable Group	Connector Style	Center Contact Plating	Housing Color	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Connector Type	Number of Ports	Mating Cycles	Body Material	Mounting Feature	Insertion Loss
Hirose Electric USA, Inc. HRM-100-1.19PJSG2
Hirose Electric USA, Inc. HRM-100-2.19PSP(40)	Solder	Free Hanging (In-Line)	Brass	5 GHz	Solder	Polytetrafluoroethylene (PTFE)	RG-405 (.085" Semi Rigid)	SMA	Gold	Gold	50 Ohms	-55 °C	125 °C	Gold	Male Pin Plug	1	1000	Stainless Steel
Hirose Electric USA, Inc. HRM-100-32S(40)	Solder		Beryllium Copper	1 GHz	Solder	Polytetrafluoroethylene (PTFE)	RG-405 (.085" Semi Rigid)	SMA	Gold	Silver	50 Ohms	-55 °C	125 °C		Female Socket Jack	1	1000	Stainless Steel	Flange
Hirose Electric USA, Inc. HRM-100-18B(40)	Solder	Free Hanging (In-Line)	Brass	7 GHz	Solder	Polytetrafluoroethylene (PTFE)	RG-405 (.085" Semi Rigid)	SMA	Gold	Silver	50 Ohms	-55 °C	125 °C	Nickel	Male Pin Plug	1	1000	Brass
Hirose Electric USA, Inc. HRM-100-2S(09)	Solder	Free Hanging (In-Line)	Beryllium Copper	12.4 GHz	Solder	Polytetrafluoroethylene (PTFE)	RG-405 (.085" Semi Rigid)	SMA	Gold	Silver	50 Ohms	-55 °C	125 °C		Female Socket Jack	1	1000	Stainless Steel		0.1 dB
Hirose Electric USA, Inc. HRM-100-32(40)
Hirose Electric USA, Inc. HRM-100-2.19PJSG2-1
Hirose Electric USA, Inc. HRM-100-1S1(40)	Solder	Free Hanging (In-Line)	Brass	12.4 GHz	Solder	Polytetrafluoroethylene (PTFE)	RG-405 (.085" Semi Rigid)	SMA	Gold	Silver	50 Ohms	-55 °C	125 °C		Male Pin Plug	1	1000	Stainless Steel		0.1 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.00
		50	$ 16.40
		100	$ 15.80
		250	$ 15.75

Description

General part information

HRM-100 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
