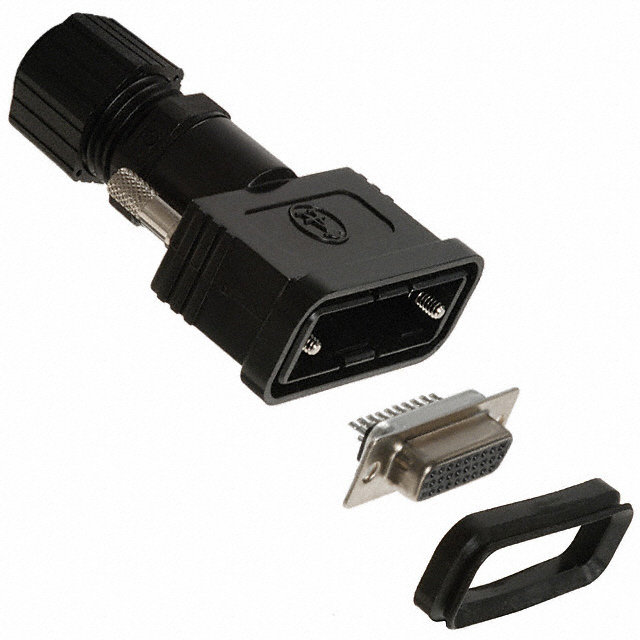

CONN D-SUB HD RCPT 26P SLDR CUP

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB HD RCPT 26P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A-HDF26-HOOD-WP

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Acrylonitrile Butadiene Styrene (ABS)
Flange Feature	Cable Side, Male Jackscrew
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density

Part	Contact Type	Mounting Type	Number of Positions	Connector Type	Contact Finish	Color	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connector Style	Flange Feature	Dielectric Material	Number of Rows
Assmann WSW Components A-HDF26-HOOD-WP	Signal	Free Hanging (In-Line)	26	Receptacle Female Sockets	Gold	Black	2	(DA A) High Density	Copper Alloy	-20 C	60 °C	IP67 - Dust Tight Waterproof	D-Sub High Density	Cable Side Male Jackscrew	Acrylonitrile Butadiene Styrene (ABS)	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
