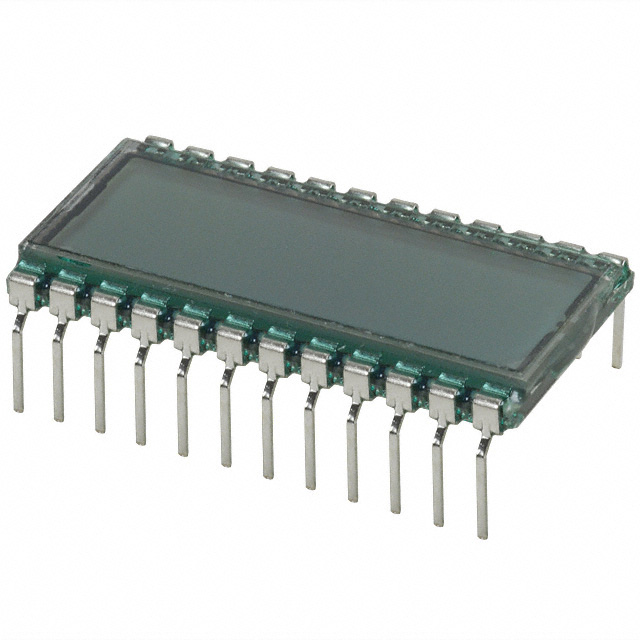

LCD-S301C31TF
ActiveLumex Opto/Components Inc.
LCD MOD 3DIG 3 X 1 TRANSFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
LCD-S301C31TF
ActiveLumex Opto/Components Inc.
LCD MOD 3DIG 3 X 1 TRANSFLECTIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-S301C31TF |
|---|---|
| Background Color | Gray |
| Backlight | Without Backlight |
| Character Format | 7-Segment |
| Character Size [y] | 5.08 mm |
| Character Size [z] | 7.87 mm |
| Display Format [x] | 3 |
| Display Format [y] | 1 |
| Display Mode | Transflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters [custom] | 3 |
| Outline L x W x H [x] | 30.7 mm |
| Outline L x W x H [y] | 16.2 mm |
| Outline L x W x H [z] | 2.8 mm |
| Viewing Area [x] | 27.9 mm |
| Viewing Area [y] | 10 mm |
| Voltage - Supply | 5 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.72 | |
| 10 | $ 1.81 | |||
| 100 | $ 1.40 | |||
| 648 | $ 1.26 | |||
| 1296 | $ 1.08 | |||
| 2592 | $ 1.03 | |||
| 5184 | $ 1.00 | |||
Description
General part information
LCD-S301 Series
Character Display Module Transflective 7-Segment TN - Twisted Nematic Without Backlight 30.70mm x 16.20mm x 2.80mm
Documents
Technical documentation and resources
No documents available
