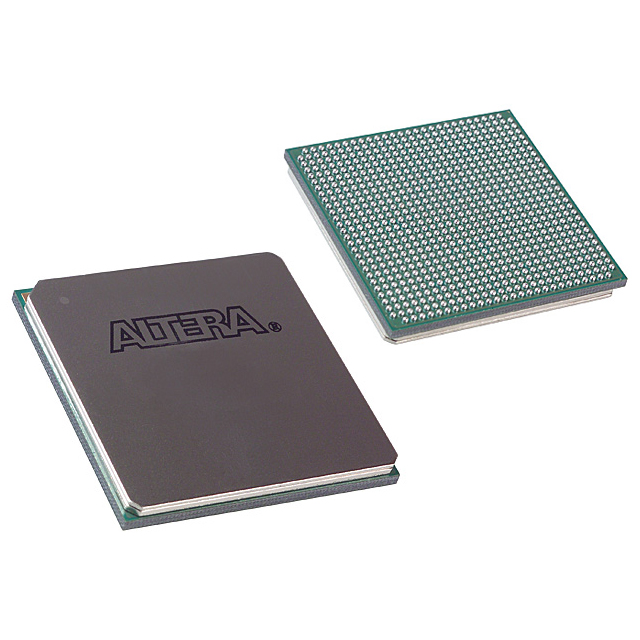

EP1S20F780C7

Obsolete

Altera

IC FPGA 586 I/O 780FBGA

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 586 I/O 780FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP1S20F780C7

Mounting Type	Surface Mount
Number of I/O	586
Number of LABs/CLBs	1846
Number of Logic Elements/Cells	18460
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	FCBGA, 780-BBGA
Supplier Device Package	780-FBGA (29x29)
Total RAM Bits	1669248 Bits
Voltage - Supply [Max]	1.575 V
Voltage - Supply [Min]	1.425 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of LABs/CLBs	Mounting Type	Number of Logic Elements/Cells	Total RAM Bits	Number of I/O	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Altera EP1S20F780I6	1.575 V	1.425 V	1846	Surface Mount	18460	1669248 Bits	586	780-BBGA FCBGA	780-FBGA (29x29)	100 °C	-40 C
Altera EP1S20F484I6N	1.575 V	1.425 V	1846	Surface Mount	18460	1669248 Bits	361	484-BBGA FCBGA	484-FBGA (23x23)	100 °C	-40 C
Altera EP1S20F780C7	1.575 V	1.425 V	1846	Surface Mount	18460	1669248 Bits	586	780-BBGA FCBGA	780-FBGA (29x29)	85 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stratix® Field Programmable Gate Array (FPGA) IC 586 1669248 18460 780-BBGA, FCBGA
