XC9276DR040R-G
ActiveTorex Semiconductor Ltd
IC REG BUCK 0.5V/0.65V DL 6WLP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC9276DR040R-G
ActiveTorex Semiconductor Ltd
IC REG BUCK 0.5V/0.65V DL 6WLP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC9276DR040R-G |
|---|---|
| Current - Output | 150 mA |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |

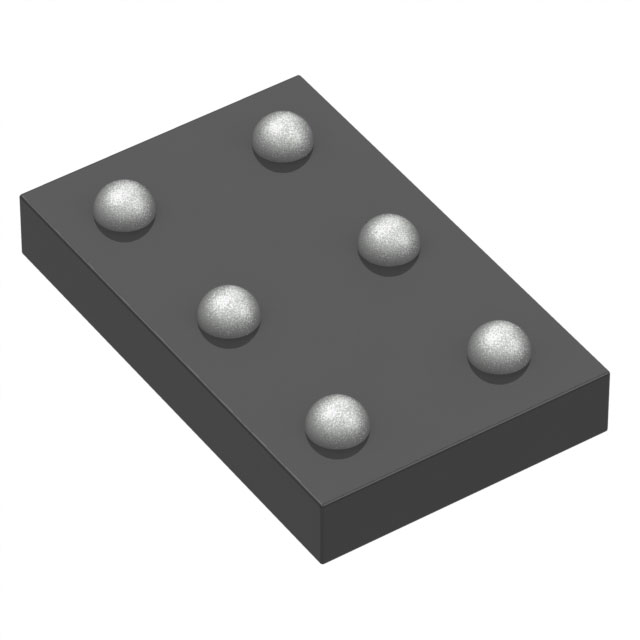

| Package / Case | 6-XFBGA, WLBGA |
| Supplier Device Package | WLP-6-03 |
| Supplier Device Package [x] | 1.07 |
| Supplier Device Package [y] | 1.72 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 1.8 V |
| Voltage - Output (Min/Fixed) [Max] | 0.65 V |
| Voltage - Output (Min/Fixed) [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.25 | |
| 10 | $ 1.11 | |||
| 25 | $ 1.06 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 1.25 | ||
| 10 | $ 1.11 | |||
| 25 | $ 1.06 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.53 | |||
| Tape & Reel (TR) | 5000 | $ 0.47 | ||
Description
General part information
XC9276 Series
Buck Switching Regulator IC Positive Fixed 0.5V, 0.65V 2 Output 150mA, 150mA 6-XFBGA, WLBGA
