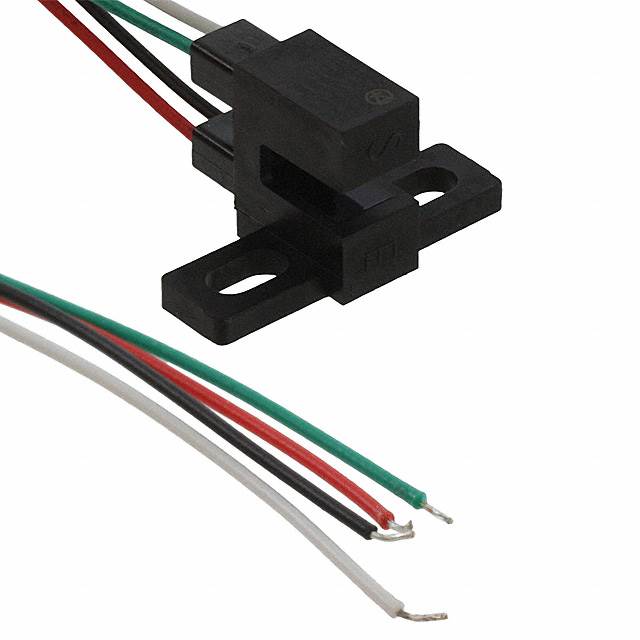

OPB830W51Z

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB830W51Z

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Module, Pre-Wired
Sensing Distance	0.125 "
Sensing Distance	3.18 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Method	Mounting Type	Current - Collector (Ic) (Max) [Max]	Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Current - DC Forward (If) (Max)	Package / Case	Output Configuration
TT Electronics/Optek Technology OPB830L55	Through-Beam	Through Hole	30 mA	Unamplified	30 V	85 °C	-40 °C	0.125 "	3.18 mm	50 mA	PCB Mount	Phototransistor
TT Electronics/Optek Technology OPB830W51Z	Through-Beam	Chassis Mount	30 mA	Unamplified	30 V	80 C	-40 °C	0.125 "	3.18 mm	50 mA	Module Pre-Wired	Phototransistor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.125" (3.18mm) Phototransistor Module, Pre-Wired
