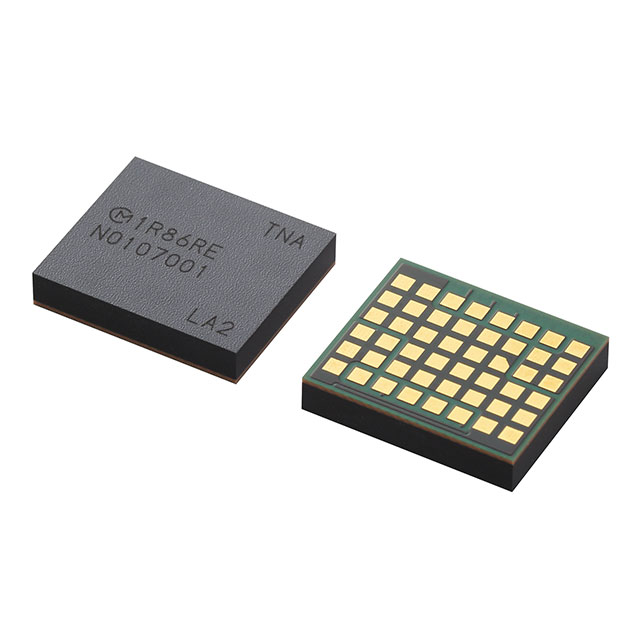

MYTNA1R86RELA2RAD

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.7-1.8V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.7-1.8V

Technical Specifications

Parameters and characteristics for this part

Specification	MYTNA1R86RELA2RAD

Applications	ITE (Commercial)
Current - Output (Max) [Max]	6 A
Efficiency	90 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	10.5 mm
Size / Dimension [x]	0.41 "
Size / Dimension [y]	0.35 "
Size / Dimension [y]	9 mm
Size / Dimension [z]	0.08 in
Size / Dimension [z]	2.1 mm
Supplier Device Package	48-LGA (10.5x9)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14.4 V
Voltage - Input (Min) [Min]	6 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.7 V

Part	Type	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Current - Output (Max) [Max]	Applications	Features	Efficiency	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Number of Outputs
Murata Power Solutions Inc. MYTNA1R84RELA2RA	Non-Isolated PoL Module	6 V	-40 °C	105 ░C	Surface Mount	14.4 V	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	48-LGA (10.5x9)	4 A	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	90.5 %	0.7 V	1.8 V	1
Murata Power Solutions Inc. MYTNA1R86RELA2RA	Non-Isolated PoL Module	6 V	-40 °C	105 ░C	Surface Mount	14.4 V	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	48-LGA (10.5x9)	6 A	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	90 %	0.7 V	1.8 V	1
Murata Power Solutions Inc. MYTNA1R86RELA2RAD	Non-Isolated PoL Module	6 V	-40 °C	105 ░C	Surface Mount	14.4 V	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	48-LGA (10.5x9)	6 A	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	90 %	0.7 V	1.8 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 8.51

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 1.8V 6A 6V - 14.4V Input
