88827044

Active

Crouzet

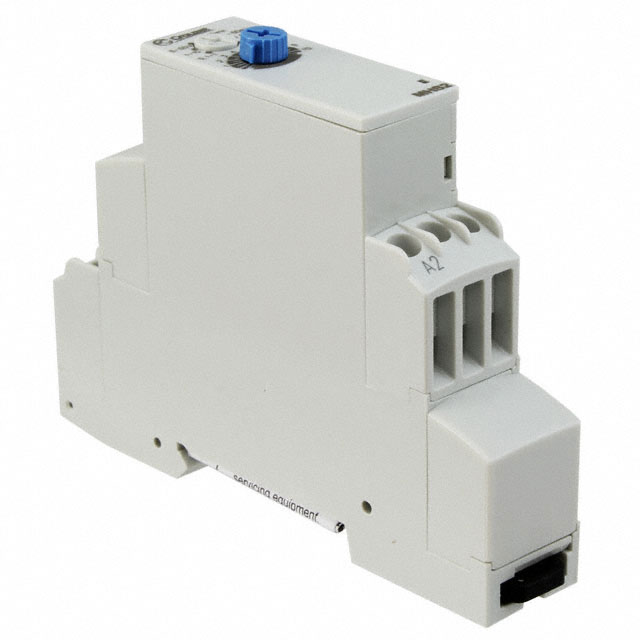

RELAY TIME DELAY 100HR DIN RAIL

Search across all available documentation for this part.

Active

Crouzet

RELAY TIME DELAY 100HR DIN RAIL

Technical Specifications

Parameters and characteristics for this part

Specification	88827044

Delay Time [Max]	100 Hrs
Delay Time [Min]	0.1 Sec
Function	Interval
Mounting Type	DIN Rail
Relay Type	Solid State Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Initiate Method	Delay Time [Max]	Delay Time [Min]	Mounting Type	Relay Type	Timing Adjustment Method	Function
Crouzet 88827044	Screw Terminal	24 VAC	240 VAC	Input Voltage Trigger Signal	100 Hrs	0.1 Sec	DIN Rail	Solid State Relay	Screwdriver Slot	Interval

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.26

General part information

Interval Time Delay Relay 0.1 Sec ~ 100 Hrs Delay DIN Rail

Technical documentation and resources

No documents available
