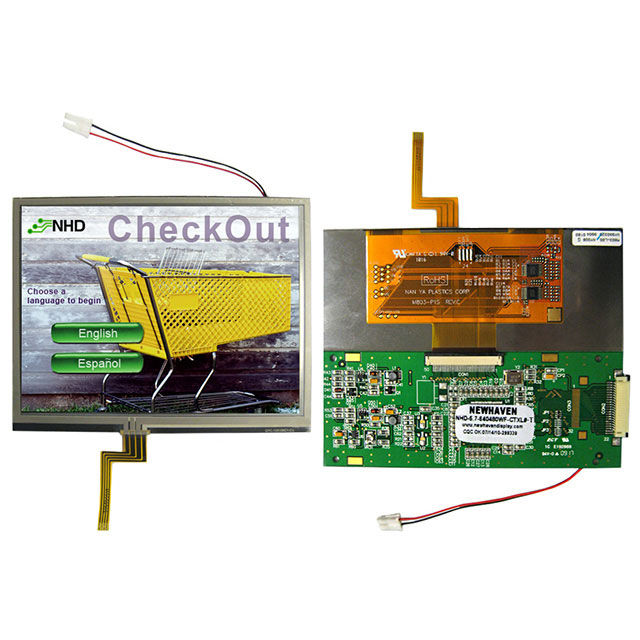

NHD-5.7-640480WF-CTXL #-T

Obsolete

Newhaven Display Intl

LCD TFT 5.7" 640X480 WHT TCHPNL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD TFT 5.7" 640X480 WHT TCHPNL

Technical Specifications

Parameters and characteristics for this part

Part	Accessory Type	For Use With/Related Products	Display Type	Backlight	Controller Type	Interface	Display Mode	Viewing Area [y]	Viewing Area [x]	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Touchscreen	Dot Size [y]	Dot Size [x]
Newhaven Display Intl NHD-5.7F-LED DRIVER	LED - Driver	NHD-5.7-640480WF Display Series
Newhaven Display Intl NHD-5.7-320240WFB-CTXI#-1			TFT - Color	LED - White	SSD1963	SSD1963	Transmissive	88.6 mm	118.28 mm	QVGA	320 pixels	240 pixels	Blue Green Red	5.7 in	144.78 mm
Newhaven Display Intl NHD-5.7-320240WFB-CTXI#-T-1			TFT - Color	LED - White	SSD1963	SSD1963	Transmissive	88.6 mm	118.28 mm	QVGA	320 pixels	240 pixels	Blue Green Red	5.7 in	144.78 mm	Resistive
Newhaven Display Intl NHD-5.7-640480WF-CTXL#			TFT - Color	LED - White	SSD1963	SSD1963	Transmissive	88.7 mm	117.5 mm		640	480	Blue Green Red	5.7 in	144.78 mm		0.18 mm	0.18 mm
Newhaven Display Intl NHD-5.7B-LED DRIVER	LED - Driver	NHD-5.7-320240WFB Display Series
Newhaven Display Intl NHD-5.7-320240WFB-ETXI#-T-1			TFT - Color	LED - White	SSD1963	SSD1963 (16-Bit RGB)	Transmissive	88.6 mm	118.28 mm	QVGA	320 pixels	240 pixels	Blue Green Red	5.7 in	144.78 mm	Resistive
Newhaven Display Intl NHD-5.7-640480WF-CTXL #-T			TFT - Color	LED - White		SSD1963	Transmissive	88.7 mm	118.2 mm		640	480	Blue Green Red	5.7 in	144.78 mm	Resistive	0.18 mm	0.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SSD1963 (8-Bit, RGB) 5.7" (144.78mm) 640 x 480 (VGA)
