XC6230B001QR-G

Active

Torex Semiconductor Ltd

MULTIFUNCTION 2A HIGH SPEED LDO

Search across all available documentation for this part.

Active

Torex Semiconductor Ltd

MULTIFUNCTION 2A HIGH SPEED LDO

Technical Specifications

Parameters and characteristics for this part

Specification	XC6230B001QR-G

Control Features	Enable, Current Limit
Current - Output	2 A
Current - Quiescent (Iq)	83 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	0.154 in
Package / Case	8-SOIC
Package / Case	3.9 mm
Protection Features	Over Current, Reverse Current, Over Temperature
PSRR	70 dB

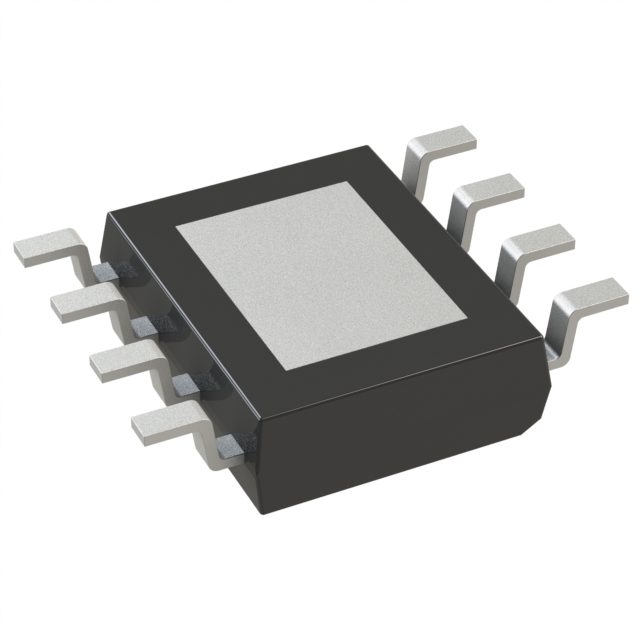

Supplier Device Package	SOP-8FD
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Max)	5 V
Voltage - Output (Min/Fixed)	1.2 V
Voltage Dropout (Max) [Max]	0.52 V

Part	Output Configuration	Voltage - Input (Max) [Max]	Control Features	Voltage - Output (Min/Fixed) [Min]	Number of Regulators	Operating Temperature [Max]	Operating Temperature [Min]	PSRR	Current - Quiescent (Iq)	Current - Output	Voltage - Output (Max) [Max]	Package / Case	Mounting Type	Voltage Dropout (Max) [Max]	Output Type	Supplier Device Package	Protection Features	Voltage - Output (Max)	Voltage - Output (Min/Fixed)	Package / Case	Package / Case
Torex Semiconductor Ltd XC6230H001ER-G	Positive	6 V	Enable	1.188 V	1	105 °C	-40 °C	70 dB	83 µA	2 A	1.212 V	6-UFDFN Exposed Pad	Surface Mount	0.41 V	Adjustable	6-USPC (1.8x2)	Over Current Over Temperature Reverse Current
Torex Semiconductor Ltd XC6230A001ER-G	Positive	6 V	Current Limit Enable		1	105 °C	-40 °C	70 dB	83 µA	2 A		6-UFDFN Exposed Pad	Surface Mount	0.41 V	Adjustable	USP-6C	Over Current Over Temperature Reverse Current	5 V	1.2 V
Torex Semiconductor Ltd XC6230B001ER-G	Positive	6 V	Current Limit Enable		1	105 °C	-40 °C	70 dB	83 µA	2 A		6-UFDFN Exposed Pad	Surface Mount	0.41 V	Adjustable	USP-6C	Over Current Over Temperature Reverse Current	5 V	1.2 V
Torex Semiconductor Ltd XC6230B001QR-G	Positive	6 V	Current Limit Enable		1	105 °C	-40 °C	70 dB	83 µA	2 A		8-SOIC	Surface Mount	0.52 V	Adjustable	SOP-8FD	Over Current Over Temperature Reverse Current	5 V	1.2 V	0.154 in	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 2A SOP-8FD
