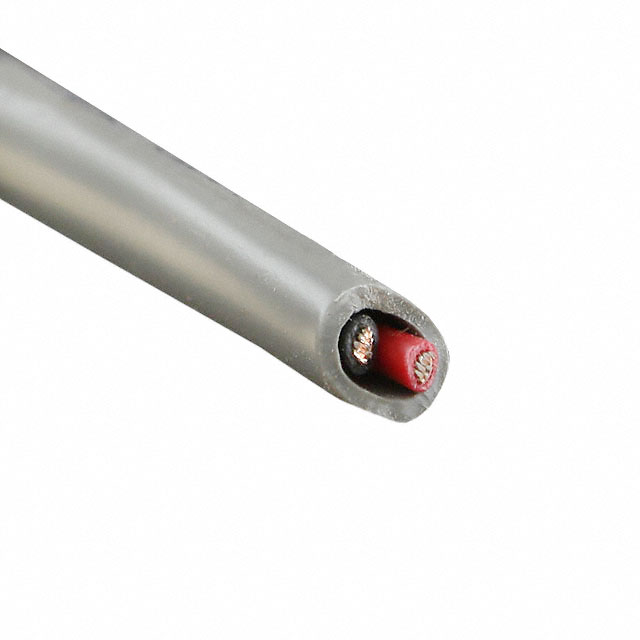

C6101A.44.10

Active

Prysmian Group

CABLE 2COND 18AWG GRAY 2500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 18AWG GRAY 2500'

Technical Specifications

Parameters and characteristics for this part

Specification	C6101A.44.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.206 "
Jacket (Insulation) Diameter [diameter]	5.23 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	2500 ft
Length	762 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Conductor Insulation	Jacket (Insulation) Material	Length [x]	Length [x]	Number of Conductors	Conductor Material	Cable Type	Jacket Color
Prysmian Group C6101A.41.10	1000 ft	15.24 m 304.8 m	0.206 "	5.23 mm	300 V	Communication Control	-20 C	80 C	16	30 AWG	18 AWG	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	50 ft 100 ft	30.5 m	2	Copper Tinned	Multi-Conductor	Gray
Prysmian Group C6101A.18.10			0.206 "	5.23 mm	300 V	Communication Control	-20 C	80 C	16	30 AWG	18 AWG	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	2	Copper Tinned	Multi-Conductor	Gray
Prysmian Group C6101A.44.10	2500 ft	762 m	0.206 "	5.23 mm	300 V	Communication Control	-20 C	80 C	16	30 AWG	18 AWG	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)			2	Copper Tinned	Multi-Conductor	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Gray 18 AWG 2500' (762.0m)
