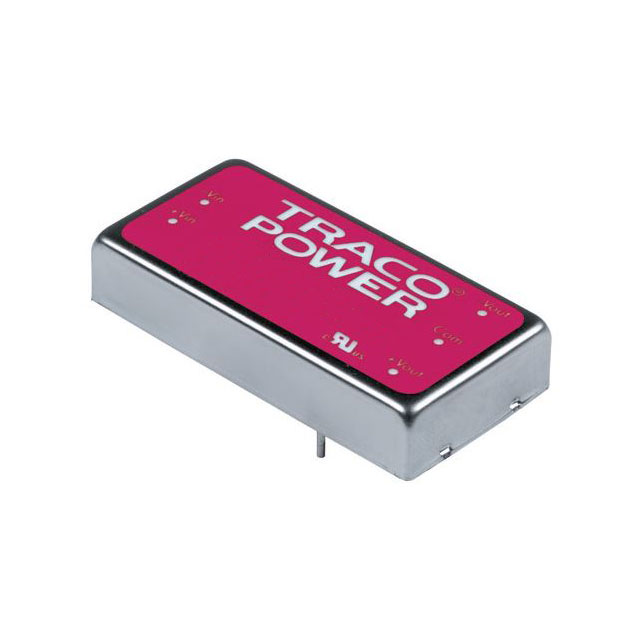

TEN 15-1210

Traco Power

DC DC CONVERTER 3.3V 13W

Search across all available documentation for this part.

Traco Power

DC DC CONVERTER 3.3V 13W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Features	Applications	Voltage - Isolation	Package / Case	Package / Case	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Power (Watts)
Traco Power TEN 15-2410WI	Isolated Module	Through Hole	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	3 A	Remote On/Off SCP	ITE (Commercial)	1.5 kV	5 Leads	6-DIP Module	9 V	85 °C	-40 °C	3.3 V	36 V	1	78 %	10 W
Traco Power TEN 15-4810WI	Isolated Module	Through Hole	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	3 A	Remote On/Off SCP	ITE (Commercial)	1.5 kV	5 Leads	6-DIP Module	18 V	85 °C	-40 °C	3.3 V	75 V	1	78 %	10 W
Traco Power TEN 15-1210	Isolated Module	Through Hole	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	4 A	OCP OVP SCP	ITE (Commercial)	1.6 kV	4 Lead	5-DIP Module	9 V	85 °C	-40 °C	3.3 V	18 V	1	79 %	13 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 46.81
