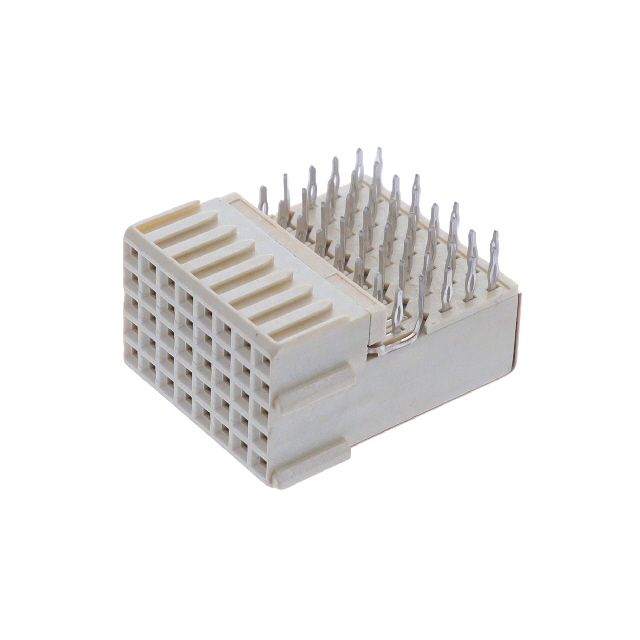

HM2R78PA5108N9LF

Active

Amphenol ICC (FCI)

MILLIPACS, B8 SERIES,RIGHT ANGLE

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

MILLIPACS, B8 SERIES,RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Specification	HM2R78PA5108N9LF

Connector Style	B 8
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Shielded
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions [custom]	16
Number of Positions [custom]	40
Number of Positions [custom]	56
Number of Positions Loaded	All
Number of Rows	2, 5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

Part	Termination	Connector Style	Current Rating (Amps)	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Voltage Rating
Amphenol ICC (FCI) HM2R78PA5108N9LF	Press-Fit	B 8	1.5 A	Board Edge Right Angle Through Hole	0.079 in	2 mm	2 5	Gold	-55 °C	125 °C	All	Shielded	16	40	56	Receptacle Female Sockets	750 Vrms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56 (40 + 16 Ground) Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
