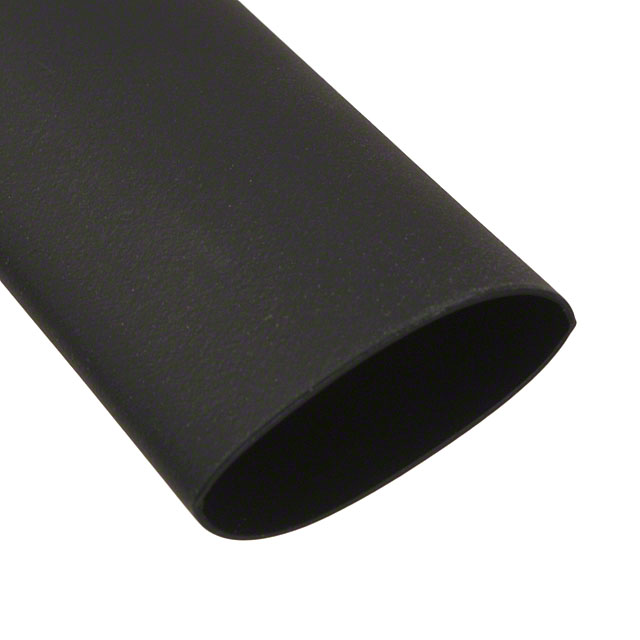

SM278-3/4"

Active

Daburn Electronics

HEATSHRINK 4:1 DUAL BLK 3/4"X4'

Search across all available documentation for this part.

Active

Daburn Electronics

HEATSHRINK 4:1 DUAL BLK 3/4"X4'

Technical Specifications

Parameters and characteristics for this part

Specification	SM278-3/4"

Color	Black
Features	Adhesive Lined, Fluid Resistant
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	16 mm
Inner Diameter - Supplied [diameter]	0.63 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness [custom]	0.063 "
Recovered Wall Thickness [custom]	1.6 mm
Shelf Life	36 Months
Shrink Temperature	120 °C
Shrinkage Ratio	4 to 1
Type	Tubing, Flexible

Part	Length	Length	Length	Shrink Temperature	Inner Diameter - Recovered	Inner Diameter - Recovered	Material	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Length [x]	Length [x]	Length [x]	Shrinkage Ratio	Shelf Life	Spool Size	Spool Size	Recovered Wall Thickness	Recovered Wall Thickness	Type	Length	Operating Temperature [Max]	Operating Temperature [Min]	Features	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]
Daburn Electronics SM278-5/16"	0.062 ' 0.083 ft 0.125 ' 0.25 ft 5 ' 25 ft	1.52 m 7.6 m 19.05 mm 25.4 mm 38.1 mm 76.2 mm 152.4 mm	0.75 " 1 in 1.5 " 3 " 6 "	120 °C	0.079 in	2.01 mm	Polyolefin (PO)	Enter Number of Feet in Order Quantity	8 mm	0.315 in	Black	4 "	0.333 ft 100 ft 200 ft	30.5 m 61 m 101.6 mm	4 to 1	36 Months	61 m	200 '	0.89 mm	0.035 in	Tubing Flexible	0.5 '	135 °C	-55 °C	Adhesive Lined Fluid Resistant
Daburn Electronics SM278-3/4"				120 °C			Polyolefin (PO)			16 mm	Black		4 ft	1.22 m	4 to 1	36 Months					Tubing Flexible		135 °C	-55 °C	Adhesive Lined Fluid Resistant	0.063 "	1.6 mm	3.99 mm	0.157 in	0.63 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.630" (16.00mm) 4 to 1 Black 4.00' (1.22m)
