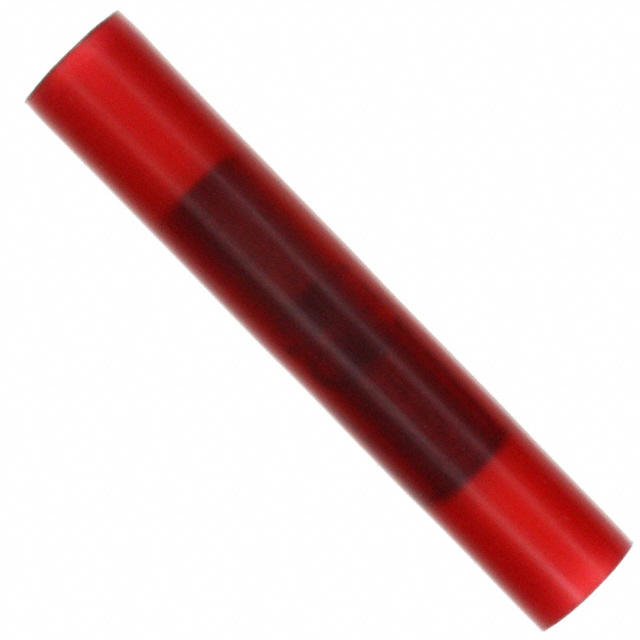

BSN18-C
ActivePanduit Corp
CONN SPLICE 18-22 AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
BSN18-C
ActivePanduit Corp
CONN SPLICE 18-22 AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSN18-C |
|---|---|
| Color | Red |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.95 | |
| 10 | $ 0.92 | |||
| 100 | $ 0.84 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.70 | |||
| 10000 | $ 0.68 | |||
Description
General part information
BSN18 Series
Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG Red
