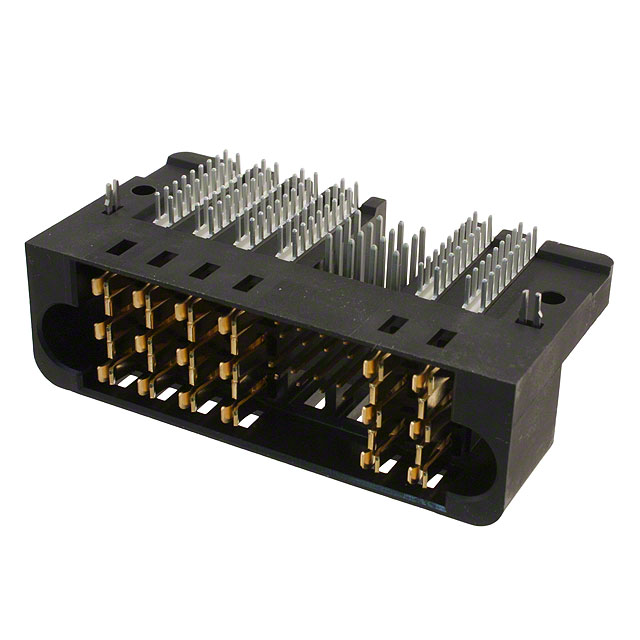

10074864-003LF

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 22POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 22POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10074864-003LF

Color	Black
Connector Style	Blade Power
Connector Type	Header, Male Pins and Blades
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	16
Contact Layout, Typical [custom]	6
Features	Board Lock, Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Termination	Solder

Part	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Connector Type	Mounting Type	Color	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Style	Termination	Pitch [x]	Pitch [x]	Features
Amphenol ICC (FCI) 10074864-001LF	22 positions	UL94 V-0	All	Header Male Pins and Blades	Through Hole Right Angle	Black	0.76 Ám	30 Áin	-65 ░C	105 ░C	16	6	Blade Power	Solder	2.54 mm	0.1 in
Amphenol ICC (FCI) 10074864-003LF	22 positions	UL94 V-0	All	Header Male Pins and Blades	Through Hole Right Angle	Black	0.76 Ám	30 Áin	-65 ░C	105 ░C	16	6	Blade Power	Solder			Board Lock Mating Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Connector Header, Male Pins and Blades Through Hole, Right Angle Black Blade Power
