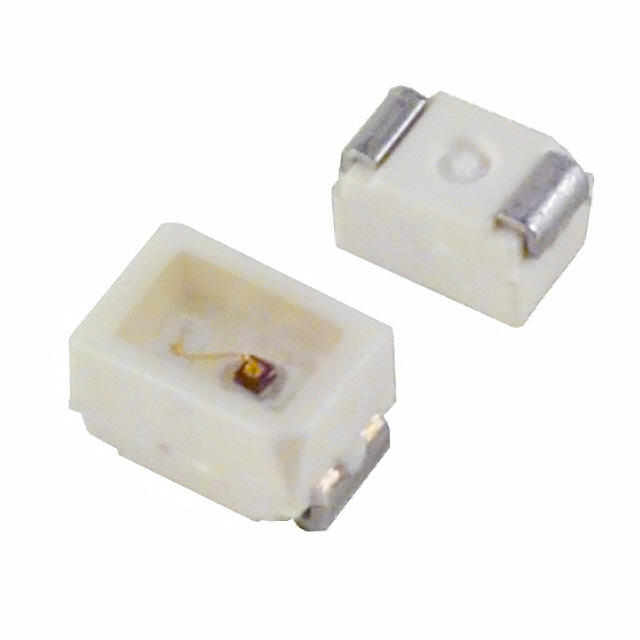

LY M676-Q2T1-26-0-20-R18-Z
Activeams-OSRAM USA INC.
LED YELLOW CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LY M676-Q2T1-26-0-20-R18-Z
Activeams-OSRAM USA INC.
LED YELLOW CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LY M676-Q2T1-26-0-20-R18-Z |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.4 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 222.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 587 nm |
| Wavelength - Peak | 591 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 15000 | $ 0.07 | |
| 30000 | $ 0.06 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.05 | |||
Description
General part information
LYM676 Series
Yellow 587nm LED Indication - Discrete 2V 2-SMD, J-Lead
