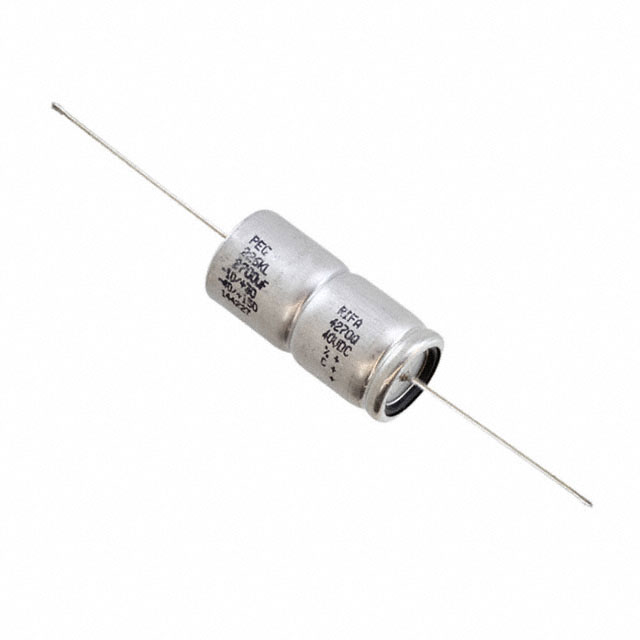

PEG226KL4270QE1

Unknown

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 40V, 30% +TOL, 10% -TOL, 2700UF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Search across all available documentation for this part.

Unknown

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 40V, 30% +TOL, 10% -TOL, 2700UF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	PEG226KL4270QE1

Applications	Automotive
Capacitance	2700 µF
ESR (Equivalent Series Resistance)	32 mOhm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Package / Case	Can, Axial
Polarization	Polar
Ratings	AEC-Q200
Ripple Current @ Low Frequency	3.535 A
Size / Dimension [diameter]	20 mm
Size / Dimension [diameter]	0.787 in
Size / Dimension [x]	1.811 "
Size / Dimension [x]	46 mm
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Voltage - Rated	40 V

Part	Voltage - Rated	Capacitance	Ratings	Polarization	ESR (Equivalent Series Resistance)	Mounting Type	Applications	Tolerance [Min]	Tolerance [Max]	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]
KEMET PEG226KL4270QE1	40 V	2700 µF	AEC-Q200	Polar	32 mOhm	Through Hole	Automotive	-10 %	30 %	2000 Hrs	Axial Can	3.535 A	20 mm	0.787 in	1.811 "	46 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2700 µF 40 V Aluminum Electrolytic Capacitors Axial, Can 32mOhm @ 100Hz 2000 Hrs @ 150°C
