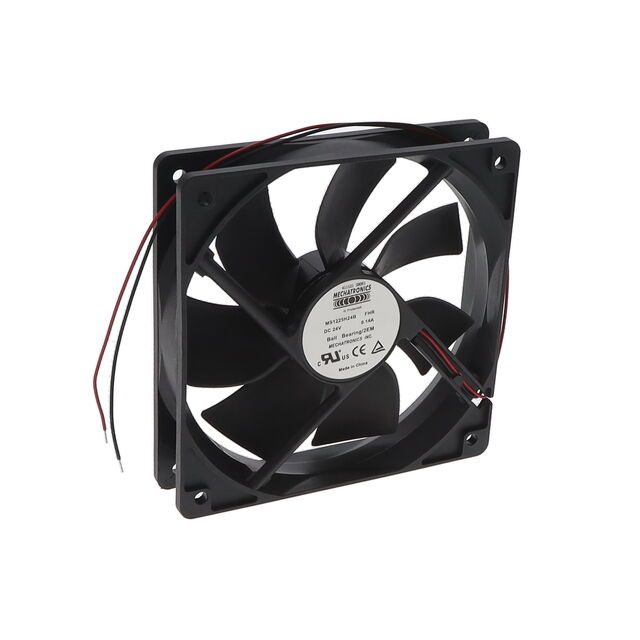

MS1225H24B-FHR-2EM
ActiveMechatronics Bearing Group
FAN AXIAL 120X25MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MS1225H24B-FHR-2EM
ActiveMechatronics Bearing Group
FAN AXIAL 120X25MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS1225H24B-FHR-2EM |
|---|---|
| Air Flow | 2.41 m³/min |
| Air Flow | 86 CFM |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 41 dB |
| RPM | 2600 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 44.8 Pa |
| Static Pressure | 0.18 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 121.11 g |
| Weight | 0.267 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.67 | |
| 10 | $ 19.79 | |||
| 25 | $ 19.04 | |||
| 50 | $ 17.79 | |||
| 100 | $ 16.41 | |||
| 250 | $ 16.16 | |||
| 500 | $ 16.04 | |||
Description
General part information
MS1225 Series
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 86.0 CFM (2.41m³/min) 2 Wire Leads
