CDFS7W2203L411

Active

MH Connectors

CONN D-SUB RCPT 7POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDFS7W2203L411

Active

MH Connectors

CONN D-SUB RCPT 7POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFS7W2203L411

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2

CDFS7W2 Series

Part	Material Flammability Rating	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Current Rating (Amps)	Contact Type	Connector Style	Shell Material, Finish	Flange Feature	Contact Finish	Contact Material	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Color	Shell Size, Connector Layout	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Features
MH Connectors CDFS7W2203L212	UL94 V-0	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Receptacle Female Sockets	5 A 20 A	Signal and Power	Combo D-Sub	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Gold	Brass	2	7	2	Black	2 (DA A) - 7W2	IP67 - Dust Tight Waterproof	-25 °C	85 °C
MH Connectors CDFS7W2103L211	UL94 V-0	Polybutylene Terephthalate (PBT)			Male Pins Plug	5 A 20 A	Signal and Power	Combo D-Sub	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Gold	Brass	2	7	2	Black	2 (DA A) - 7W2	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Flash	Grounding Indents
MH Connectors CDFS7W2103L212	UL94 V-0	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Male Pins Plug	5 A 20 A	Signal and Power	Combo D-Sub	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Gold	Brass	2	7	2	Black	2 (DA A) - 7W2	IP67 - Dust Tight Waterproof	-25 °C	85 °C		Grounding Indents
MH Connectors CDFS7W2203L412	UL94 V-0	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Receptacle Female Sockets	5 A 40 A	Signal and Power	Combo D-Sub	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Gold	Brass	2	7	2	Black	2 (DA A) - 7W2	IP67 - Dust Tight Waterproof	-25 °C	85 °C
MH Connectors CDFS7W2103L412	UL94 V-0	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Male Pins Plug	5 A 40 A	Signal and Power	Combo D-Sub	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Gold	Brass	2	7	2	Black	2 (DA A) - 7W2	IP67 - Dust Tight Waterproof	-25 °C	85 °C		Grounding Indents
MH Connectors CDFS7W2203L411	UL94 V-0	Polybutylene Terephthalate (PBT)			Receptacle Female Sockets	5 A 40 A	Signal and Power	Combo D-Sub	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Gold	Brass	2	7	2	Black	2 (DA A) - 7W2	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 17.31
		10	$ 13.32
		25	$ 12.05
		40	$ 11.45
		80	$ 10.65
		230	$ 9.57
		440	$ 8.98
		945	$ 8.35

Description

General part information

CDFS7W2 Series

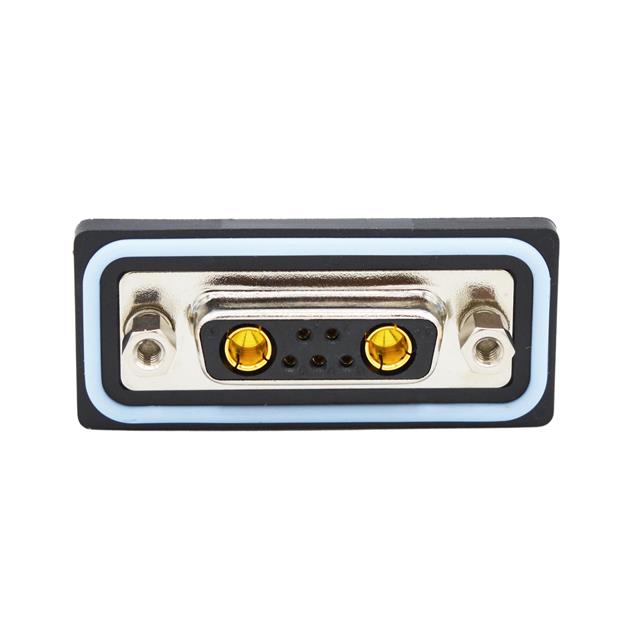

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
