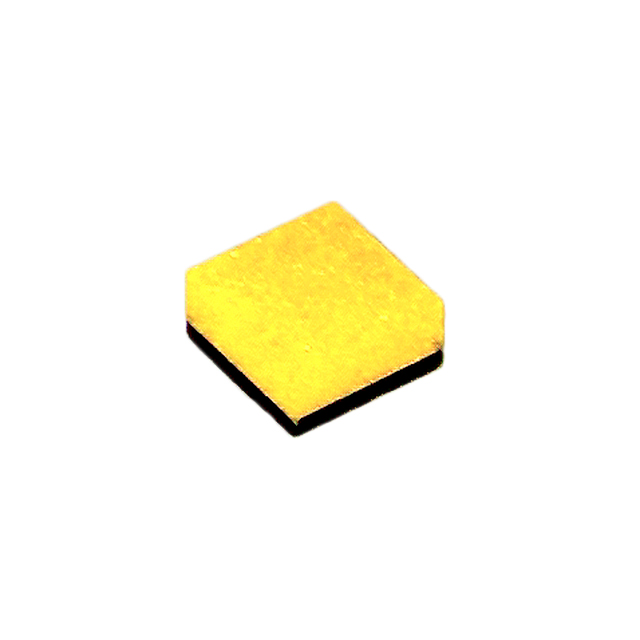

TL1WK-DW1,LCS

Obsolete

Toshiba Semiconductor and Storage

LED LETERAS COOL WHT 6500K 2SMD

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

LED LETERAS COOL WHT 6500K 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	TL1WK-DW1,LCS

CCT (K)	6500 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	180 mA
Current - Test	60 mA
Flux @ 25°C, Current - Test	22 lm
Height - Seated (Max) [Max] [z]	0.015 in
Height - Seated (Max) [Max] [z]	0.39 mm
Lumens/Watt @ Current - Test	130 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Size / Dimension [x]	0.65 mm
Size / Dimension [x]	0.026 in
Size / Dimension [y]	0.65 mm
Size / Dimension [y]	0.026 in
Supplier Device Package	SMD
Thermal Resistance of Package	17 °C/W
Viewing Angle	165 °
Voltage - Forward (Vf) (Typ)	2.8 V

Part	Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Test	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	CCT (K)	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Current - Max [Max]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thermal Resistance of Package	Viewing Angle	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
Toshiba Semiconductor and Storage TL1WK-DW1,L	Cool White	2.8 V	Surface Mount	60 mA	2-SMD No Lead	0.015 in	0.39 mm	131 lm/W	80	6500 K	17 °C/W	26 lm	18 lm	180 mA	SMD	0.65 mm	0.026 in	0.65 mm	0.026 in
Toshiba Semiconductor and Storage TL1WK-DW1,LCS	Cool White	2.8 V	Surface Mount	60 mA	2-SMD No Lead	0.015 in	0.39 mm	130 lm/W	80	6500 K				180 mA	SMD	0.65 mm	0.026 in	0.65 mm	0.026 in	17 °C/W	165 °	22 lm
Toshiba Semiconductor and Storage TL1WK-LL1,L	Warm White	2.8 V	Surface Mount	60 mA	2-SMD No Lead	0.015 in	0.39 mm	113 lm/W	80	2700 K	17 °C/W			180 mA	SMD	0.65 mm	0.026 in	0.65 mm	0.026 in			19 lm	23 lm	17 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting LETERAS™ White, Cool 6500K 2.8V 60mA 165° 2-SMD, No Lead
