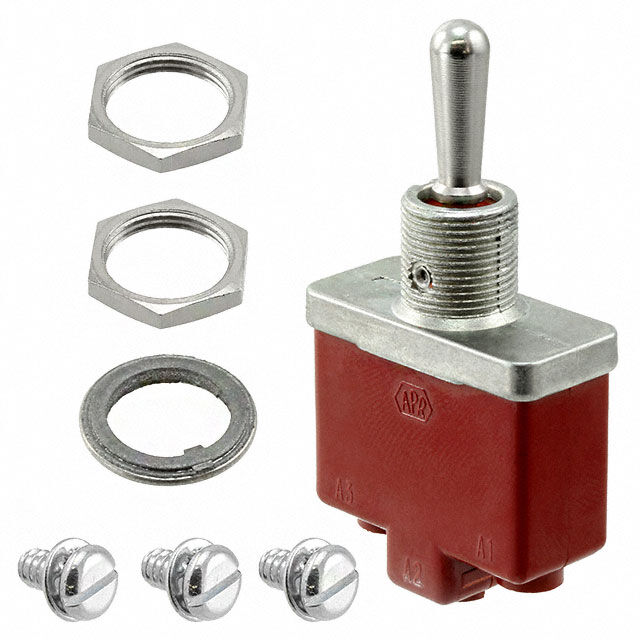

CT37001N022

Active

APEM

SWITCH TOGGLE SPDT 10A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CT37001N022

Actuator Length [x]	17.5 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	15 A, 10 A
Electrical Life	10000 Cycles
Features	Sealed - Fully
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Bushing Thread	Electrical Life	Actuator Length [x]	Voltage Rating - AC	Actuator Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Switch Function	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - DC	Illumination	Circuit	Termination Style	Ingress Protection
APEM CT37001N022	15/32-32	10000 Cycles	17.5 mm	125 V	Standard Round	Sealed - Fully	85 °C	-40 °C	Nickel Plated	Mom-Off-Mom	12.2 mm	10 A 15 A	28 V	Non-Illuminated	SPDT	Screw Terminal	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
