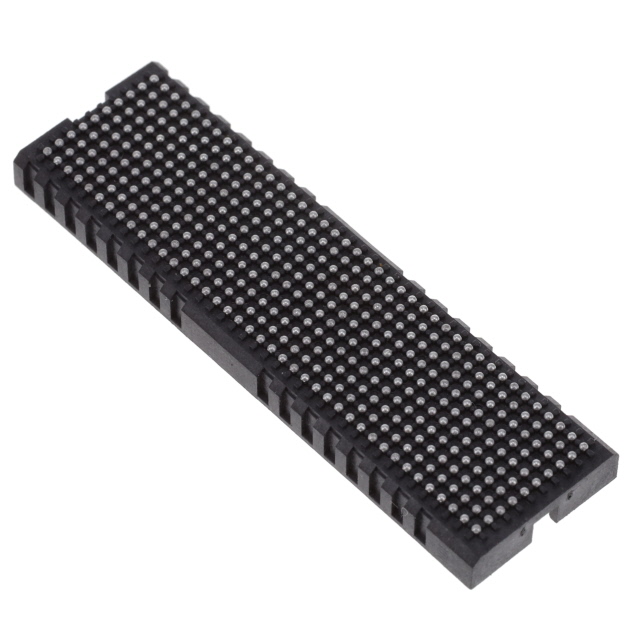

YFT-40-05-H-10-SB-K-TR
ActiveSamtec Inc.
CONN ARRAY 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YFT-40-05-H-10-SB-K-TR
ActiveSamtec Inc.
CONN ARRAY 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YFT-40-05-H-10-SB-K-TR |
|---|---|
| Connector Type | Male Pins, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Pick and Place |
| Height Above Board | 0.177 in |
| Height Above Board | 4.5 mm |
| Mated Stacking Heights | 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 400 |
| Number of Rows | 10 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 54.16 | |
| 10 | $ 41.98 | |||
| 25 | $ 38.17 | |||
| 50 | $ 35.62 | |||
| 100 | $ 33.32 | |||
| Digi-Reel® | 1 | $ 54.16 | ||
| 10 | $ 41.98 | |||
| 25 | $ 38.17 | |||
| 50 | $ 35.62 | |||
| 100 | $ 33.32 | |||
| Tape & Reel (TR) | 350 | $ 32.92 | ||
Description
General part information
YFT-40 Series
400 Position Connector Array, Male Pins Surface Mount Gold
Documents
Technical documentation and resources
