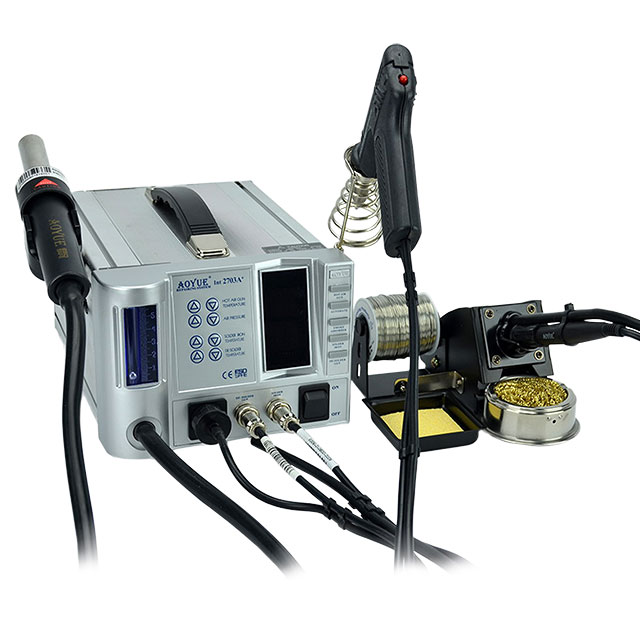

AO2703A+

Active

SRA Soldering Products

2703A+ ALL IN ONE DIGITAL HOT AI

Search across all available documentation for this part.

Active

SRA Soldering Products

2703A+ ALL IN ONE DIGITAL HOT AI

Technical Specifications

Parameters and characteristics for this part

Specification	AO2703A+

Base Unit	2703A+
Control/Display Type	Digital
Features	Programmable, Internal Vacuum Pump
Includes	Power Cord, Heat Resistant Pad, Maintenance Kit, Hot Air Nozzle
Number of Channels [custom]	3
Plug Type	Not Specified, Included
Supplied Iron, Tweezer, Handle	Included, Not Specified
Supplied Tips/Nozzles	WQ-2B
Temperature Range [Max]	480 °C
Temperature Range [Max]	896 °F
Temperature Range [Min]	100 °C
Temperature Range [Min]	100 °C
Tip Cleaner	Not Included
Type	Rework (Hot Air)
Voltage - Input	110 VDC
Voltage - Output	24 V
Wattage	500 W
Workstand	2663B

Part	Voltage - Output	Includes	Base Unit	Features	Wattage	Supplied Tips/Nozzles	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Voltage - Input	Workstand	Plug Type	Number of Channels [custom]	Supplied Iron, Tweezer, Handle	Type	Control/Display Type	Tip Cleaner
SRA Soldering Products AO2703A+220V	24 V	Heat Resistant Pad Hot Air Nozzle Maintenance Kit Power Cord	2703A+	Internal Vacuum Pump Programmable	500 W	WQ-2B	100 °C	480 °C	100 °C	896 °F	220 VDC	2663B	Included Not Specified	3	Included Not Specified	Rework (Hot Air)	Digital	Not Included
SRA Soldering Products AO2703A+	24 V	Heat Resistant Pad Hot Air Nozzle Maintenance Kit Power Cord	2703A+	Internal Vacuum Pump Programmable	500 W	WQ-2B	100 °C	480 °C	100 °C	896 °F	110 VDC	2663B	Included Not Specified	3	Included Not Specified	Rework (Hot Air)	Digital	Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 379.99

General part information

2703A+ ALL IN ONE DIGITAL HOT AI
