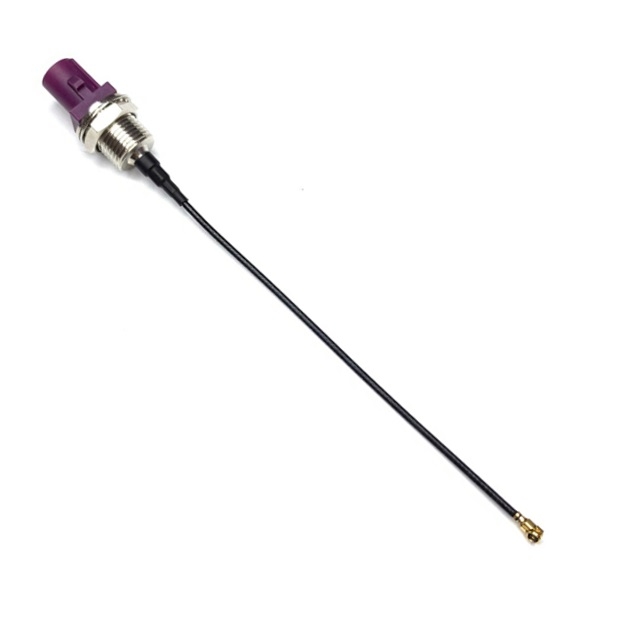

U.FLP-FAKRADP-88100

Active

SINBON

COAX CBL U.FL TO FAKRA SMB 3.9"

Search across all available documentation for this part.

Active

SINBON

COAX CBL U.FL TO FAKRA SMB 3.9"

Technical Specifications

Parameters and characteristics for this part

Specification	U.FLP-FAKRADP-88100

1st Connector	U.FL (UMCC) Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra SMB Plug
2nd Connector Mounting Feature	Bulkhead - Rear Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Type [diameter]	1.37 mm
Color	Black
Frequency - Max [Max]	4 GHz
Length [x]	0.1 m
Length [x]	3.937 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to Fakra SMB

Part	1st Connector Mounting Type	Cable Type [diameter]	Overall Impedance	1st Connector	1st Contact Gender	2nd Contact Gender	2nd Connector Mounting Feature	Frequency - Max [Max]	Length [x]	Length [x]	Color	2nd Connector	2nd Connector Mounting Type	Style	Operating Temperature [Max]	Operating Temperature [Min]
SINBON U.FLP-FAKRADP-88100	Free Hanging (In-Line)	1.37 mm	50 Ohms	U.FL (UMCC) Plug Right Angle	Female	Male	Bulkhead - Rear Side Nut	4 GHz	0.1 m	3.937 in	Black	Fakra SMB Plug	Panel Mount	U.FL (UMCC) to Fakra SMB	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC) to Fakra SMB 1.37mm OD Coaxial Cable 3.937" (100.00mm)
