9008-9113-000

Active

Radiall USA, Inc.

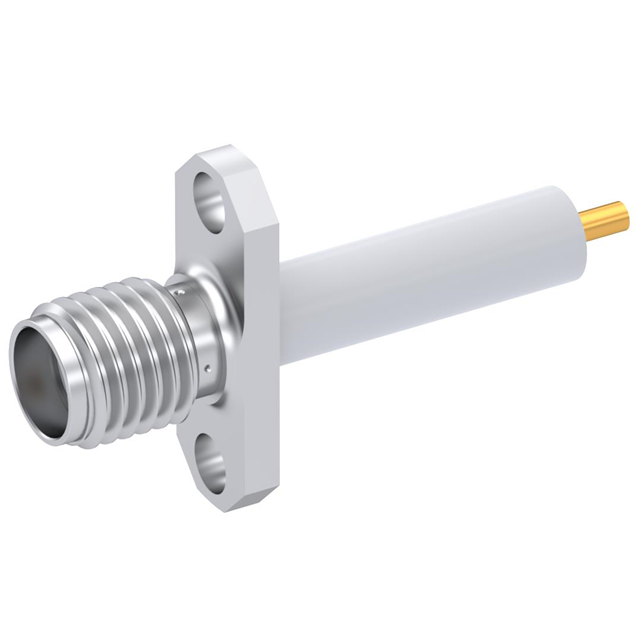

SMA / STRAIGHT JACK RECEPTACLE F

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK RECEPTACLE F

Technical Specifications

Parameters and characteristics for this part

Specification	9008-9113-000

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Center Contact Material	Mounting Feature	Housing Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Plating	Impedance	Number of Ports	Dielectric Material	Connector Type	Contact Termination	Shield Termination	Frequency - Max [Max]	Mounting Type	Connector Style	Body Material
Radiall USA, Inc. 9008-9113-000	Beryllium Copper	Flange	Silver	Extended Insulation	-65 ░C	165 °C	500	Gold	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Solder	Solder	18 GHz	Panel Mount Through Hole	SMA	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.06

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
