XCGB4 0001000

Active

Belden Inc.

GIGABIX 4PR X-CONN REEL

Search across all available documentation for this part.

Active

Belden Inc.

GIGABIX 4PR X-CONN REEL

Technical Specifications

Parameters and characteristics for this part

Specification	XCGB4 0001000

Cable Type	Multi-Pair, Cat6
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP), Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	4.7 mm
Jacket (Insulation) Diameter [diameter]	0.185 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Usage	Network
Wire Gauge	23 AWG

Part	Usage	Jacket Color	Conductor Strand	Number of Conductors	Length	Length	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Cable Type	Wire Gauge
Belden Inc. XCGB4 0001000	Network	Black	Solid	8	1000 ft	304.8 m	Fluorinated Ethylene-Propylene (FEP) Polyolefin (PO)	4.7 mm	0.185 in	Copper Bare	Multi-Pair Cat6	23 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.98

General part information

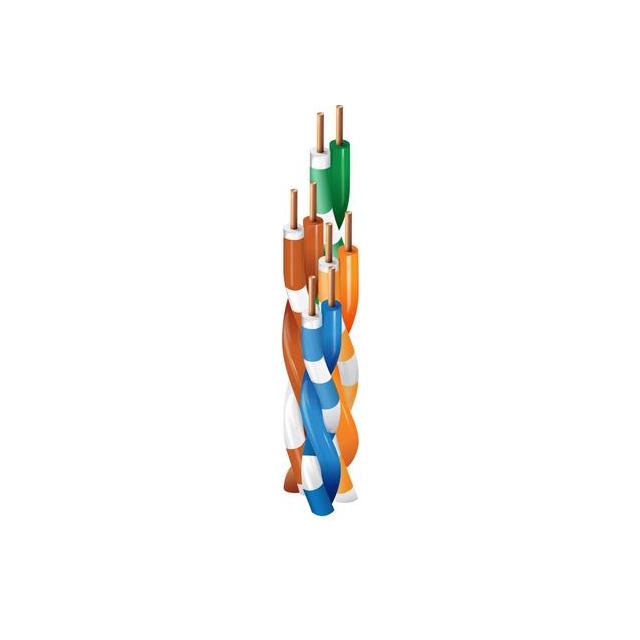

8 (4 Pair) Conductor Multi-Pair, Cat6 Cable Black 23 AWG 1000.0' (304.8m)
