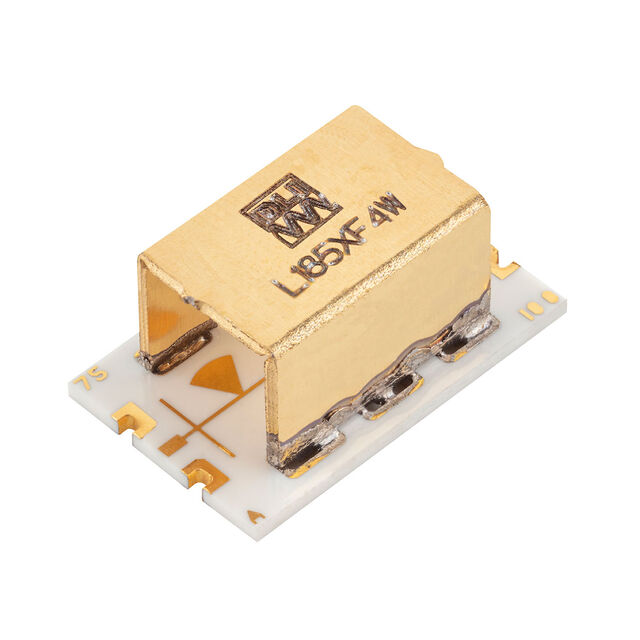

L185XF4W

Active

Knowles Johanson Manufacturing

RF FILTER LOW PASS 6SMD

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

RF FILTER LOW PASS 6SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Filter Type [custom]	Mounting Type	Insertion Loss	Height (Max) [Max]	Height (Max) [Max]	Frequency	Type	For Use With/Related Products	Supplied Contents
Knowles Johanson Manufacturing L185XF4S-T	3-SMD No Lead	3.56 mm	0.22 in	5.59 mm	0.14 "	Low Pass	Surface Mount	2.2 dB	2.49 mm	0.098 in	18 GHz
Knowles Johanson Manufacturing L185XF4S	2-SMD No Lead	3.56 mm	0.22 in	5.59 mm	0.14 "	Low Pass	Surface Mount	2.2 dB	2.49 mm	0.098 in	9 GHz
Knowles Johanson Manufacturing DEB-L185XF4S											18 GHz	Filter	L185XF4S	Board(s)
Knowles Johanson Manufacturing L185XF4W	6-SMD No Lead	3.56 mm	0.22 in	5.59 mm	0.14 "	Low Pass	Surface Mount	2.2 dB	2.87 mm	0.113 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 2.2dB 6-SMD, No Lead
