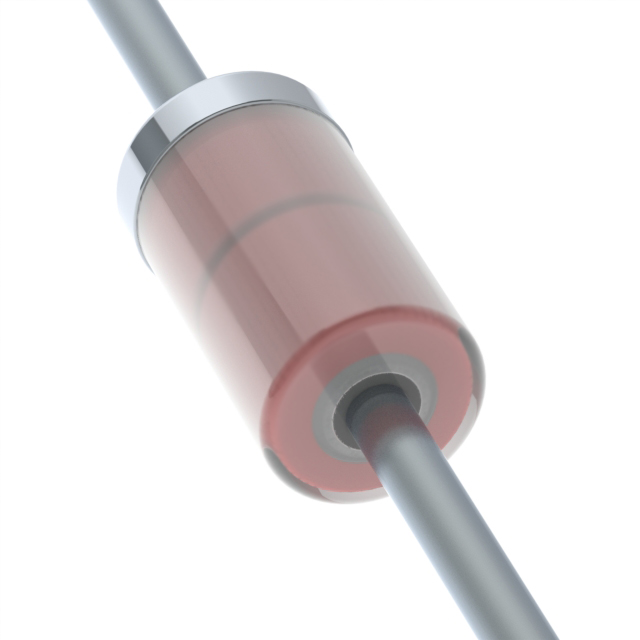

BAV21_AY_00001

Active

Panjit International Inc.

DIODE STANDARD 200V 200MA DO35

Search across all available documentation for this part.

Active

Panjit International Inc.

DIODE STANDARD 200V 200MA DO35

Technical Specifications

Parameters and characteristics for this part

Specification	BAV21_AY_00001

Capacitance @ Vr, F	3 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	100 nA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	Axial, DO-35, DO-204AH
Reverse Recovery Time (trr)	50 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	DO-35
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Capacitance @ Vr, F	Qualification	Supplier Device Package	Grade	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Mounting Type	Technology
Panjit International Inc. BAV21WS-AU_R1_000A1	150 °C	-55 °C	SC-90 SOD-323F	5 pF	AEC-Q101	SOD-323	Automotive	100 nA	200 mA	200 V	Any Speed	200 mA	1 V	50 ns	Surface Mount	Standard
Panjit International Inc. BAV21W_R1_00001	150 °C	-55 °C	SOD-123	5 pF		SOD-123		100 nA	200 mA	200 V	Any Speed	200 mA	1 V	50 ns	Surface Mount	Standard
Panjit International Inc. BAV21WS_R1_00001	150 °C	-55 °C	SC-90 SOD-323F	5 pF		SOD-323		100 nA	200 mA	200 V	Any Speed	200 mA	1 V	50 ns	Surface Mount	Standard
Panjit International Inc. BAV21_AY_00001	150 °C	-55 °C	Axial DO-204AH DO-35	3 pF		DO-35		100 nA	200 mA	200 V	Any Speed	200 mA	1 V	50 ns	Through Hole	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 200 V 200mA Through Hole DO-35
