RZB92DHAS-S250

Obsolete

Sullins Connector Solutions

CONN PCI CARDEDGE FML 184P 0.050

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN PCI CARDEDGE FML 184P 0.050

Technical Specifications

Parameters and characteristics for this part

Specification	RZB92DHAS-S250

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI 5V 64 Bit
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Flange Feature	Unthreaded, Side Mount Opening
Flange Feature [diameter]	0.125 in
Flange Feature [diameter]	3.18 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	184
Number of Positions/Bay/Row [custom]	11
Number of Positions/Bay/Row [custom]	32
Number of Positions/Bay/Row [custom]	49
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Read Out	Dual
Termination	Solder, Staggered

Part	Contact Finish Thickness	Contact Finish Thickness	Gender	Color	Contact Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Termination	Number of Rows	Contact Material	Number of Positions	Material - Insulation	Pitch [x]	Pitch [x]	Card Type	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Card Thickness	Card Thickness	Mounting Type	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions RZB92DHFR-S250	10 Áin	0.25 Ám	Female	Black	Hairpin Bellows	11	32	49	Solder	2	Phosphor Bronze	184	Polyphenylene Sulfide (PPS)	0.05 in	1.27 mm	PCI 5V 64 Bit	Dual	125 °C	-65 ░C	Gold	0.062 in	1.57 mm	Surface Mount
Sullins Connector Solutions RZB92DHRN-S330	10 Áin	0.25 Ám	Female	Black	Hairpin Bellows	49	32	11	Solder	2	Phosphor Bronze	184	Polyphenylene Sulfide (PPS)	0.05 in	1.27 mm		Dual	125 °C	-65 ░C	Gold	0.062 in	1.57 mm	Board Edge Straddle Mount	Board Guide Card Extender
Sullins Connector Solutions RZB92DHFR-S329	10 Áin	0.25 Ám	Female	Black	Hairpin Bellows	49	32	11	Solder	2	Phosphor Bronze	184	Polyphenylene Sulfide (PPS)	0.05 in	1.27 mm		Dual	125 °C	-65 ░C	Gold	0.062 in	1.57 mm	Surface Mount
Sullins Connector Solutions RZB92DHAS-S250	10 Áin	0.25 Ám	Female	Black	Hairpin Bellows	11	32	49	Solder Staggered	2	Phosphor Bronze	184	Polyphenylene Sulfide (PPS)	0.05 in	1.27 mm	PCI 5V 64 Bit	Dual	125 °C	-65 ░C	Gold	0.062 in	1.57 mm	Through Hole Right Angle		Side Mount Opening Unthreaded	0.125 in	3.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

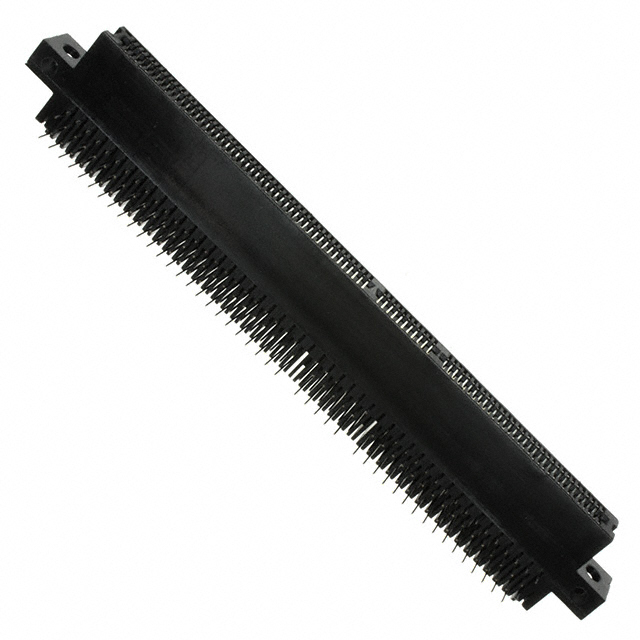

184 Position Female Connector PCI 5V 64 Bit Gold 0.050" (1.27mm) Black
