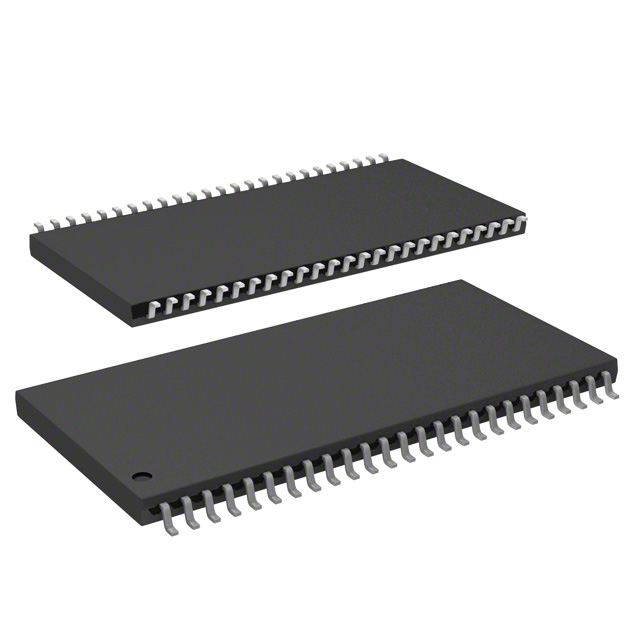

W9816G6JH-5

Winbond Electronics

IC DRAM 16MBIT PAR 50TSOP II

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W9816G6JH-5

Winbond Electronics

IC DRAM 16MBIT PAR 50TSOP II

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W9816G6JH-5

Access Time	4.5 ns
Clock Frequency	200 MHz
Memory Format	DRAM
Memory Interface	Parallel
Memory Organization	1 M
Memory Size	16 Mb
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	50-TSOP
Supplier Device Package	50-TSOP II
Technology	SDRAM
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

W9816G6 Series

Part	Package / Case	Memory Format	Memory Interface	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Mounting Type	Memory Type	Supplier Device Package	Technology	Access Time	Clock Frequency	Memory Organization
Winbond Electronics W9816G6JH-6	50-TSOP	DRAM	Parallel	70 °C	0 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	50-TSOP II	SDRAM	5 ns	166 MHz	1 M
Winbond Electronics W9816G6JB-6I	60-TFBGA	DRAM	Parallel	85 °C	-40 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	60-VFBGA (6.4x10.1)	SDRAM	5 ns	166 MHz	1 M
Winbond Electronics W9816G6IB-6	60-TFBGA	DRAM	Parallel	70 °C	0 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	60-VFBGA (6.4x10.1)	SDRAM	5 ns	166 MHz	1 M
Winbond Electronics W9816G6JB-6	60-TFBGA	DRAM	Parallel	70 °C	0 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	60-VFBGA (6.4x10.1)	SDRAM	5 ns	166 MHz	1 M
Winbond Electronics W9816G6JH-7I	50-TSOP	DRAM	LVTTL	85 °C	-40 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	50-TSOP II	SDRAM	5 ns	143 MHz	1 M
Winbond Electronics W9816G6JH-5 TR	50-TSOP	DRAM	Parallel	70 °C	0 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	50-TSOP II	SDRAM	4.5 ns	200 MHz	1 M
Winbond Electronics W9816G6JH-6I	50-TSOP	DRAM	Parallel	85 °C	-40 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	50-TSOP II	SDRAM	5 ns	166 MHz	1 M
Winbond Electronics W9816G6JH-6I TR	50-TSOP	DRAM	Parallel	85 °C	-40 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	50-TSOP II	SDRAM	5 ns	166 MHz	1 M
Winbond Electronics W9816G6JB-6I TR	60-TFBGA	DRAM	Parallel	85 °C	-40 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	60-VFBGA (6.4x10.1)	SDRAM	5 ns	166 MHz	1 M
Winbond Electronics W9816G6JH-5	50-TSOP	DRAM	Parallel	70 °C	0 °C	3.6 V	3 V	16 Mb	Surface Mount	Volatile	50-TSOP II	SDRAM	4.5 ns	200 MHz	1 M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	117	$ 1.40

Description

General part information

W9816G6 Series

SDRAM Memory IC 16Mbit Parallel 200 MHz 4.5 ns 50-TSOP II

Documents

Technical documentation and resources
