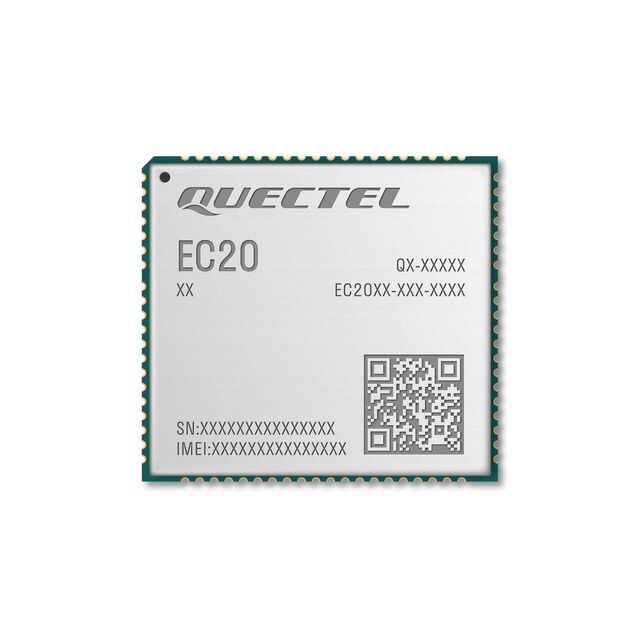

EC20EATEA-256-STD

Obsolete

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC20EATEA-256-STD

Antenna Type	Antenna Not Included
Current - Transmitting	20 mA
Data Rate	150 Mbps
Frequency	1800 GHz, 900 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	33 dBm
Protocol	GSM, WCDMA, UMTS, GLONASS, CDMA, LTE, GPS, GPRS, Beidou, EDGE, GNSS, Galileo
RF Family/Standard	Cellular, Navigation
Sensitivity	-112 dBm
Serial Interfaces	SDIO, USB, UART, ADC
Voltage - Supply [Max]	4.3 V
Voltage - Supply [Min]	3.3 V

EC20 Series

Part	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Data Rate	Package / Case	Mounting Type	Power - Output	Sensitivity	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	RF Family/Standard	Current - Transmitting
Quectel EC20CFATEA-512-STD	Beidou CDMA EDGE Galileo GLONASS GNSS GPRS GPS GSM LTE UMTS WCDMA	4.3 V	3.3 V	Antenna Not Included	150 Mbps	Module	Surface Mount	33 dBm	-112 dBm	ADC SDIO UART USB	85 °C	-40 °C	900 MHz 1800 GHz	Cellular Navigation	20 mA
Quectel EC20EATEA-256-STD	Beidou CDMA EDGE Galileo GLONASS GNSS GPRS GPS GSM LTE UMTS WCDMA	4.3 V	3.3 V	Antenna Not Included	150 Mbps	Module	Surface Mount	33 dBm	-112 dBm	ADC SDIO UART USB	85 °C	-40 °C	900 MHz 1800 GHz	Cellular Navigation	20 mA
Quectel EC20AATEA-256-STD	Beidou CDMA EDGE Galileo GLONASS GNSS GPRS GPS GSM LTE UMTS WCDMA	4.3 V	3.3 V	Antenna Not Included	150 Mbps	Module	Surface Mount	33 dBm	-112 dBm	ADC SDIO UART USB	85 °C	-40 °C	900 MHz 1800 GHz	Cellular Navigation	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EC20 Series

Cellular, Navigation BeiDou, CDMA, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, GPRS, LTE, UMTS, WCDMA Transceiver Module 900MHz, 1.8GHz Antenna Not Included Surface Mount
