1001-004-01010

Active

CnC Tech, LLC

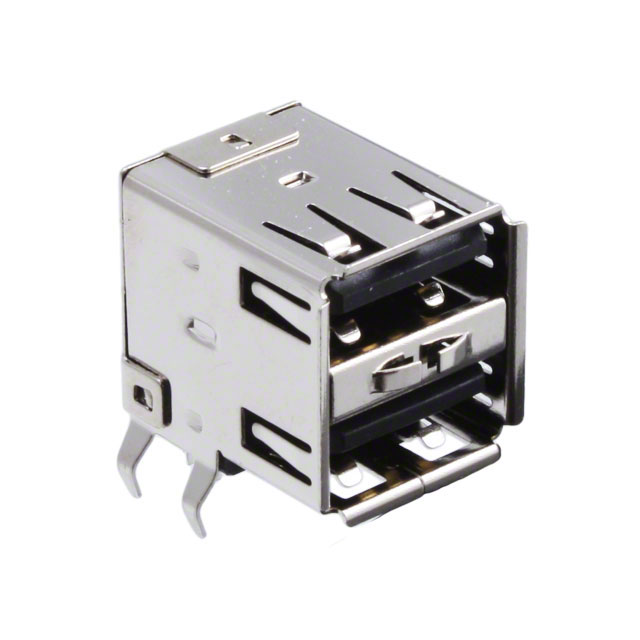

CONN RCPT USB1.1 TYPEA STACK R/A

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCPT USB1.1 TYPEA STACK R/A

Technical Specifications

Parameters and characteristics for this part

Specification	1001-004-01010

Connector Type	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	8
Number of Ports	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Steel, Brass
Specifications	USB 1.1
Termination	Solder
Voltage - Rated	30 V

Part	Contact Finish	Shell/Shielding Material	Connector Type	Mating Cycles	Number of Ports	Specifications	Material Flammability Rating	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts	Mounting Feature	Voltage - Rated	Mounting Type	Termination	Current Rating (Amps)
CnC Tech, LLC 1001-004-01010	Gold	Brass Steel	Stacked USB-A (USB TYPE-A)	1500	2	USB 1.1	UL94 V-0	Receptacle	85 °C	-55 °C	8	Horizontal	30 V	Through Hole Right Angle	Solder	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A), Stacked USB 1.1 Receptacle Connector 8 Position Through Hole, Right Angle
