D15L4

Active

HELLERMANNTYTON

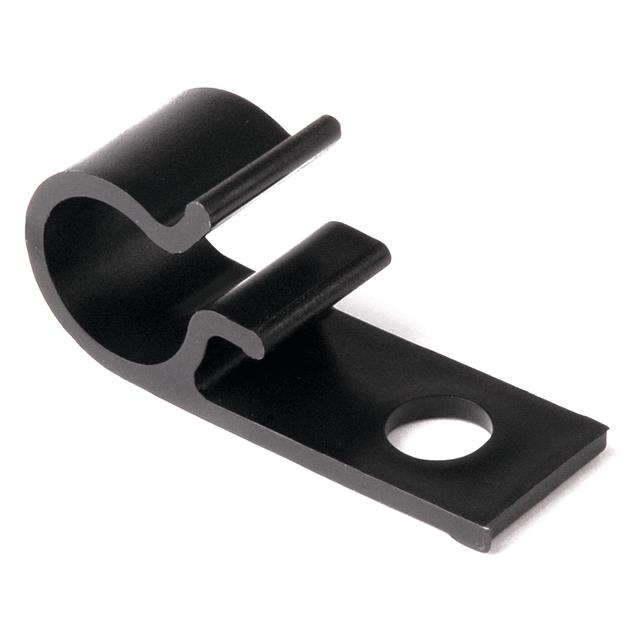

CBL CLIP D-TYPE BLACK FASTENER

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP D-TYPE BLACK FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	D15L4

Bundle Center to Mounting Center [x]	0.984 in, 25 mm
Color	Black
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	2 mm
Material Thickness	0.079 in
Mounting Type	Fastener
Opening Size	15.01 mm
Opening Size [z]	0.591 in
Screw Size	0.315 in
Screw Size	8 mm
Type	Clip, D-Type
Type Attributes	Open
Width	15 mm
Width	0.591 in

Part	Bundle Center to Mounting Center [x]	Opening Size	Opening Size [z]	Type	Material Flammability Rating	Mounting Type	Material Thickness	Material Thickness	Screw Size	Screw Size	Width	Width	Material	Type Attributes	Color
HELLERMANNTYTON D15L4	0.984 in 25 mm	15.01 mm	0.591 in	Clip D-Type	UL94 HB	Fastener	2 mm	0.079 in	0.315 in	8 mm	15 mm	0.591 in	Polyacetal (POM)	Open	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, D-Type Black Fastener 0.591" (15.01mm)
