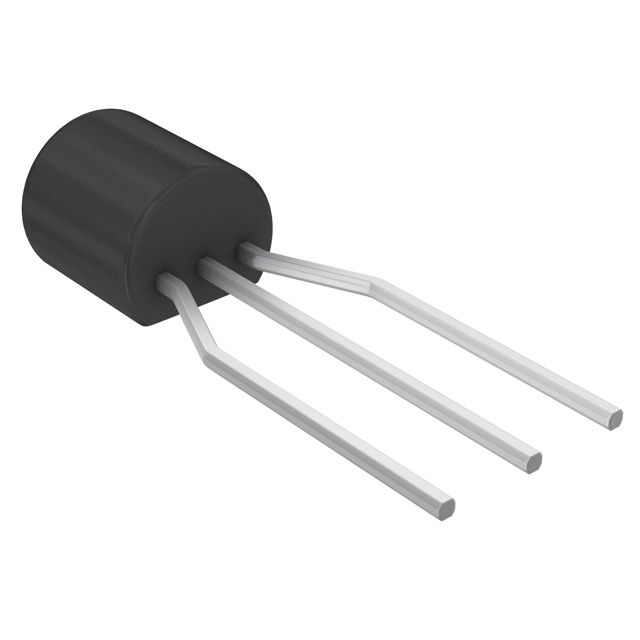

PQ033ES3MXPQ

Obsolete

Sharp Microelectronics

IC REG LINEAR 3.3V 300MA TO92-3

Search across all available documentation for this part.

Obsolete

Sharp Microelectronics

IC REG LINEAR 3.3V 300MA TO92-3

Technical Specifications

Parameters and characteristics for this part

Specification	PQ033ES3MXPQ

Current - Output	300 mA
Current - Quiescent (Iq)	650 µA
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-226-3, TO-92-3
Protection Features	Over Current, Over Temperature
Supplier Device Package	TO-92-3
Voltage - Input (Max) [Max]	9 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.7 V

Part	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Supplier Device Package	Protection Features	Output Type	Current - Quiescent (Iq)	Mounting Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Number of Regulators
Sharp Microelectronics PQ033ES3MXPQ	9 V	TO-226-3 TO-92-3	3.3 V	0.7 V	TO-92-3	Over Current Over Temperature	1.81 mOhm	650 µA	Through Hole	Positive	-30 ░C	80 C	300 mA	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA TO-92-3
